Ticket Printers
TK180
The smallest combined printer with high reliability features
TK180
TK180 is a compact and highly reliable printer, designed to deliver high performance even in the smallest spaces. Equipped with an optional roll holder, it features a powerful processor, hot swap function, and a print speed exceeding 200 mm/s and Ethernet, RS232, and USB interfaces ensure simple and flexible integration, while the new mobile sensor allows detection of black marks or transparent labels on various types of paper.
Key points
TK180
Compact format
Only 130 x 185.9 x 118.9 mm: among the smallest on the market.
Fast printing
Speed above 200 mm/sec.
Versatile
Supports rolls from 20 to 82.5 mm and paper weights from 70 to 255 g/m².
Barcodes and labels
Prints 1D/2D barcodes, coupons, vouchers, labels and receipts.
Complete integration
Ethernet, RS232, USB, readable display and automatic calibration.
Applications
TK180 is designed for the following applications
Labels
Coupon/Voucher
Check-in
Parking ticket
Metro and bus
Theme parks
Galleria

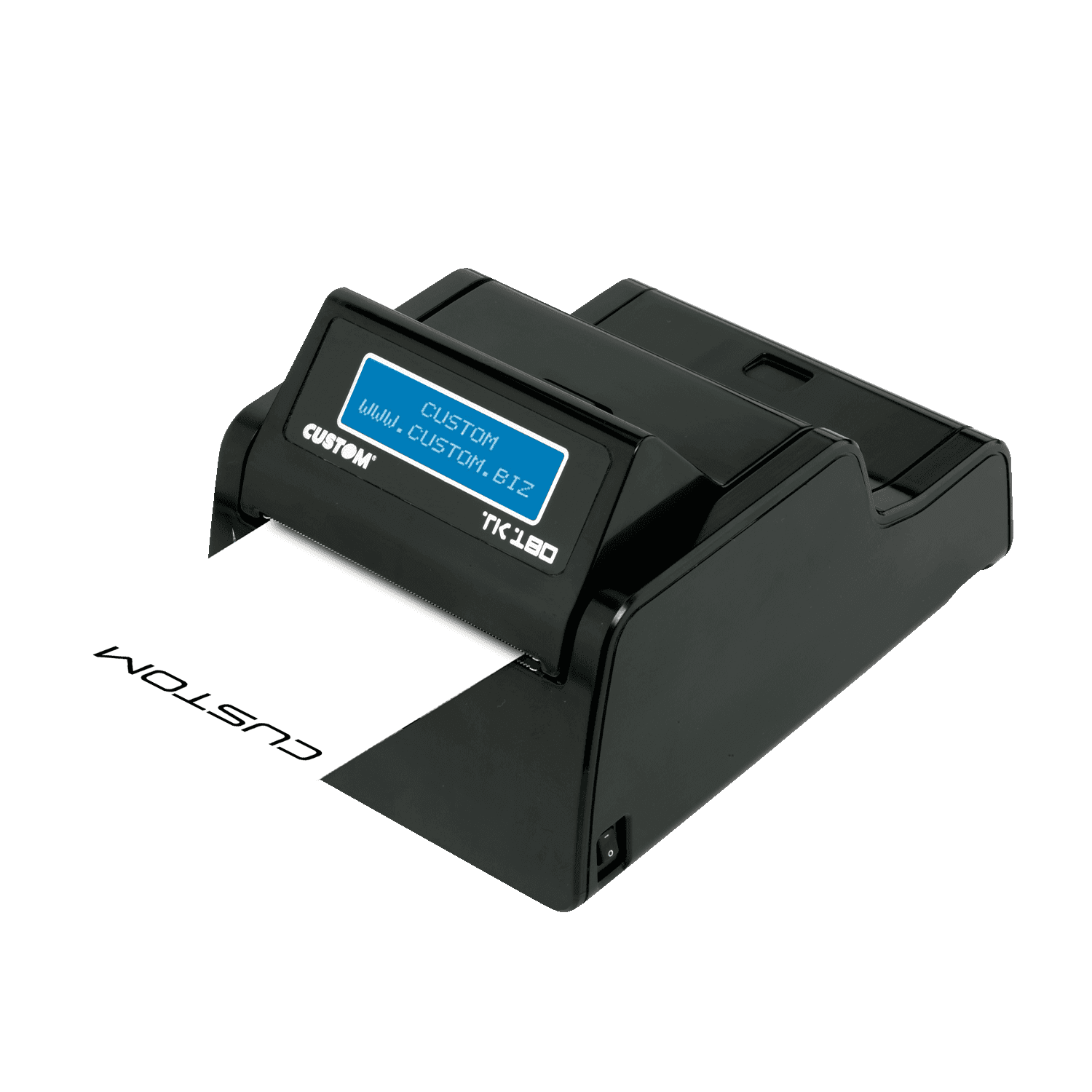

TK180 from every angle
Technical sheet
Technical sheet
| Printing method | Thermal with fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm) |
| Printing speed (max) | 200 mm/sec |
| Paper width | 20-82,5 mm |
| Paper weight | 70-255 g/m² |
| Paper thickness | Max 270 μm |
| External roll diameter (max) | 200 mm |
| Roll core diameter | 25 mm |
| Sensors | Auto sensor calibration; movable sensor (black mark/gap); status monitoring for temperature; paper presence; cover open |
| Emulation | CUSTOM/POS; SVELTA |
| Interfaces | RS232; USB; Ethernet |
| Print Driver | Windows®; Linux; VirtualCOM; Android™; iOS; OPOS |
| Software Tools | PrinterSet; CustomPowerTool; Status Monitor |
| Special features | compact; desktop; wristband; labels; RFID UHF |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1,5 A |
| Print Head Life | 100 Km / 100M pulses |
| Cutter | full cut |
| Cutter life | 1.000.000 cuts |
| Operating temperature | 0°C ~ 40°C |
| Dimensions (L x W x H) | 185,9 x 130 x 118,9 mm |
| Weight | 1,9 Kg |
| Box contents | device; quick guide; power supply; power cord; paper block guide; paper width reducer |
Related solutions
Discover combined or alternative solutions
Explore other Products, Software and Services to find the ones that best suit your needs.
Models
All available models
911HL021000733
PRINTER TK180 RS232/USB/ETH PLASTIC CASE
