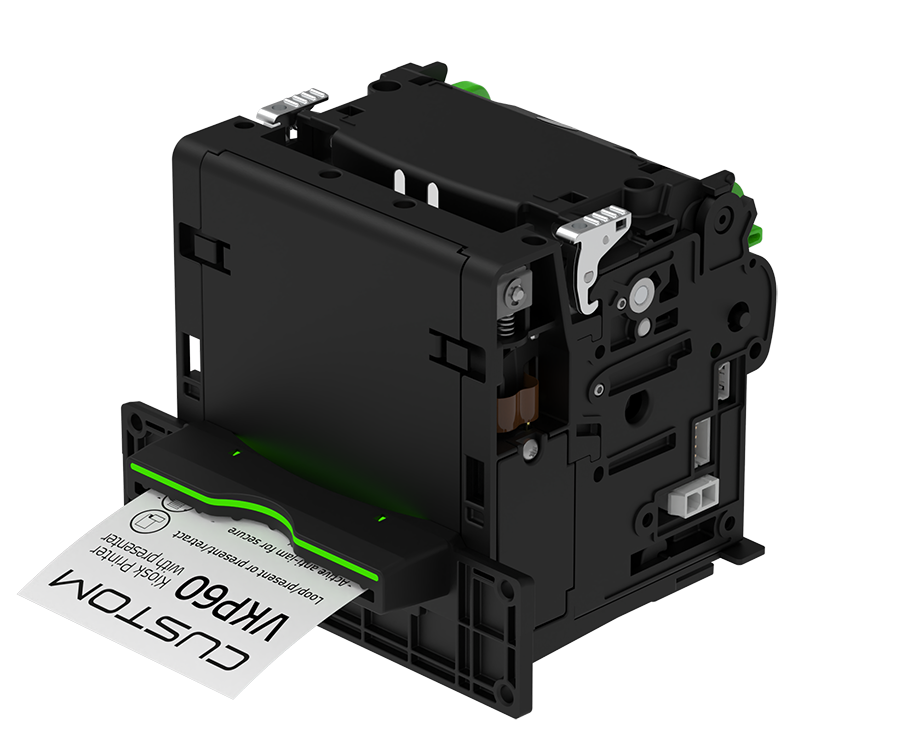

VKP60
VKP6O is the kiosk printer for receipt and ticket printing. Thanks to its multiple configurations, it is suitable for a wide variety of self-service applications. Compact, versatile, and provided with useful features such as anti-jamming, full and partial cutting, this device can be employed in any type of kiosk thanks to its adjustable two-position roll holder. VKP60 is available in three different configurations: compact, bezel and presenter.
Jumbo roll holder
The jumbo roll holder for VKP60 is designed to extend the autonomy of kiosk installations by supporting extra-long paper rolls. Ideal for high volume applications, it reduces the frequency of paper roll replacement. With flexible mounting options and full compatibility with VKP60, VKP60 bezel and VKP60 presenter, it provides a reliable and adaptable solution for demanding self-service applications.
- Support large paper rolls: up to 200mm outer diameter, increasing kiosk uptime and reducing maintenance frequency.
- Integrated pre-tensioner system: designed to absorb shocks and ensure smooth paper unwinding.
- Compatible with multiple core sizes: supporting inner cores from 25mm to 40mm.
- Flexible installation options: with horizzontal or vertical mounting underneath the kiosk.
- Full VKP60 compatibility: including VKP60, VKP60 bezel and VKP60 presenter, with hanging brackets and wired NPE included.
Key points
VKP60
High versatility
The wide range of accessories makes it suitable for any application
User-friendly interface
Equipped with USB as default option, can include serial port and Ethernet as optional
Eco-compatible
Energy and paper saving mode
One model, two configurations (VP60 Presenter)
Loop/issue or issue/retract (patented system)
Performance and compactness (VKP60 Compact)
Ultra-compact solution capable of full and partial cutting
Applications
VKP60 is designed for the following applications
Self-service
Banking
Parking
Queue Management
Gas Stations
Payment Terminals
Galleria
VKP60 from every angle
Certifications
Our product, certified and guaranteed
Energy Saving Mode
Our latest generation printers can reduce stand-by power consumption by up to 50% with the firmware option Power Saving Mode.
Paper Saving Mode
This product thanks to the Paper Saving Mode, is capable of reducing paper usage by 30%(1) while maintaining the same amount of data present on the ticket/receipt.
(1) The reduction refers to the total length of the ticket, measured across two reference lengths (58 and 40). The Paper Saving Mode option does not affect the printing of the Header and Images sections present on the ticket and which remain unchanged.
Technical sheet
Technical sheet
VKP60
VKP60 B
VKP60 P
Resolution203 dpi203 dpi203 dpi
Number of dots8 dots/mm8 dots/mm8 dots/mm
Power supply24 Vdc ±10%, 12 Vdc ±10%24 Vdc ±10%, 12 Vdc ±10%24 Vdc ±10%, 12 Vdc ±10%
Print speed200 mm/sec200 mm/sec200 mm/sec
Paper thicknessFrom 50 to 130 µmFrom 50 to 130 µmFrom 50 to 100 µm
Roll diameterMax 100 mm with CUSTOM roll holderMax 100 mm with CUSTOM roll holderMax 100 mm with CUSTOM roll holder
Internal roll diameter12 mm12 mm12 mm
Paper width44, 50, 54, 58, 60 mm44, 50, 54, 58, 60 mm44, 50, 54, 58, 60 mm
Paper weightFrom 50 to 120 g/m²From 50 to 120 g/m²From 50 to 120 g/m²
Print width56 mm56 mm56 mm
CutterFull cut and partial cutFull cut and partial cutFull cut
InterfacesUSB, optional RS232 or EthernetUSB, optional RS232 or EthernetUSB, optional RS232 or Ethernet
SensorsPaper presence, cover open, print head temperature, cutter home position, black mark, active anti-jam, optional near paper endPaper presence, cover open, print head temperature, cutter home position, black mark, active anti-jam, optional near paper endPaper presence, cover open, print head temperature, cutter home position, black mark, paper presence on output, optional near paper end
Character setUSA, Multilingual, Euro, Portuguese, Hebrew, Canadian/French, Arabic, Nordic, Cyrillic 2, Katakana, Latin 2, Cyrillic, Scandinavian, Greek, Turkish, Baltic area, Vietnamese, Chinese GB18030, Korean PC949USA, Multilingual, Euro, Portuguese, Hebrew, Canadian/French, Arabic, Nordic, Cyrillic 2, Katakana, Latin 2, Cyrillic, Scandinavian, Greek, Turkish, Baltic area, Vietnamese, Chinese GB18030, Korean PC949USA, Multilingual, Euro, Portuguese, Hebrew, Canadian/French, Arabic, Nordic, Cyrillic 2, Katakana, Latin 2, Cyrillic, Scandinavian, Greek, Turkish, Baltic area, Vietnamese, Chinese GB18030, Korean PC949
BarcodesUPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QR CODE, AZTEC, PDF417, DATAMATRIX, GS1 DATABARUPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QR CODE, AZTEC, PDF417, DATAMATRIX, GS1 DATABARUPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QR CODE, AZTEC, PDF417, DATAMATRIX, GS1 DATABAR
Print formatHeight/width from 1 to 8 cpi, bold, reverse, underlined, italicHeight/width from 1 to 8 cpi, bold, reverse, underlined, italicHeight/width from 1 to 8 cpi, bold, reverse, underlined, italic
Print direction0°, 90°, 180°, 270°0°, 90°, 180°, 270°0°, 90°, 180°, 270°
EmulationCUSTOM/POSCUSTOM/POSCUSTOM/POS
Data buffer16 kB16 kB16 kB
Flash memory2 MB2 MB2 MB
RAM memory640 kB640 kB640 kB
Print head life200 km / 100M pulses200 km / 100M pulses200 km / 100M pulses
Cutter life1,000,000 cuts1,000,000 cuts1,000,000 cuts
DriverWindows® (32/64 bit), CUPS Linux (32/64 bit), OPOS, Java POS, Status Monitor SDKWindows® (32/64 bit), CUPS Linux (32/64 bit), OPOS, Java POS, Status Monitor SDKWindows® (32/64 bit), CUPS Linux (32/64 bit), OPOS, Java POS, Status Monitor SDK
Software toolsPrinterSet, Custom Power Tool, Status Monitor, Custom Windows® API, Driver ManagerPrinterSet, Custom Power Tool, Status Monitor, Custom Windows® API, Driver ManagerPrinterSet, Custom Power Tool, Status Monitor, Custom Windows® API, Driver Manager
Special featuresMultiple versions, TG2460 bracket adapter, patented loop/presenter mode or present/retract mode, easy printer replacement, active anti-jam, energy-saving mode, paper-saving mode, optional wireless roll holderMultiple versions, TG2460 bracket adapter, patented loop/presenter mode or present/retract mode, easy printer replacement, active anti-jam, energy-saving mode, paper-saving mode, optional wireless roll holderMultiple versions, TG2460 bracket adapter, patented loop/presenter mode or present/retract mode, easy printer replacement, active anti-jam, energy-saving mode, paper-saving mode, optional wireless roll holder
Operating temperature-20°C ~ 70°C-20°C ~ 70°C-20°C ~ 70°C
Dimensions86 (W) x 58 (D) x 81 (H) mm86 (W) x 78.5 (D) x 89.5 (H) mm109.8 (W) x 99 (D) x 87.3 (H) mm
Weight0.33 kg0.34 kg0.45 kg
Package contentsDevice, quick guide. Presenter model: paper mouth.Device, quick guide. Presenter model: paper mouth.Device, quick guide. Presenter model: paper mouth.
VKP60
VKP60 B
VKP60 P
Resolution203 dpi203 dpi203 dpi
Number of dots8 dots/mm8 dots/mm8 dots/mm
Power supply24 Vdc ±10%, 12 Vdc ±10%24 Vdc ±10%, 12 Vdc ±10%24 Vdc ±10%, 12 Vdc ±10%
Print speed200 mm/sec200 mm/sec200 mm/sec
Paper thicknessFrom 50 to 130 µmFrom 50 to 130 µmFrom 50 to 100 µm
Roll diameterMax 100 mm with CUSTOM roll holderMax 100 mm with CUSTOM roll holderMax 100 mm with CUSTOM roll holder
Internal roll diameter12 mm12 mm12 mm
Paper width44, 50, 54, 58, 60 mm44, 50, 54, 58, 60 mm44, 50, 54, 58, 60 mm
Paper weightFrom 50 to 120 g/m²From 50 to 120 g/m²From 50 to 120 g/m²
Print width56 mm56 mm56 mm
CutterFull cut and partial cutFull cut and partial cutFull cut
InterfacesUSB, optional RS232 or EthernetUSB, optional RS232 or EthernetUSB, optional RS232 or Ethernet
SensorsPaper presence, cover open, print head temperature, cutter home position, black mark, active anti-jam, optional near paper endPaper presence, cover open, print head temperature, cutter home position, black mark, active anti-jam, optional near paper endPaper presence, cover open, print head temperature, cutter home position, black mark, paper presence on output, optional near paper end
Character setUSA, Multilingual, Euro, Portuguese, Hebrew, Canadian/French, Arabic, Nordic, Cyrillic 2, Katakana, Latin 2, Cyrillic, Scandinavian, Greek, Turkish, Baltic area, Vietnamese, Chinese GB18030, Korean PC949USA, Multilingual, Euro, Portuguese, Hebrew, Canadian/French, Arabic, Nordic, Cyrillic 2, Katakana, Latin 2, Cyrillic, Scandinavian, Greek, Turkish, Baltic area, Vietnamese, Chinese GB18030, Korean PC949USA, Multilingual, Euro, Portuguese, Hebrew, Canadian/French, Arabic, Nordic, Cyrillic 2, Katakana, Latin 2, Cyrillic, Scandinavian, Greek, Turkish, Baltic area, Vietnamese, Chinese GB18030, Korean PC949
BarcodesUPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QR CODE, AZTEC, PDF417, DATAMATRIX, GS1 DATABARUPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QR CODE, AZTEC, PDF417, DATAMATRIX, GS1 DATABARUPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QR CODE, AZTEC, PDF417, DATAMATRIX, GS1 DATABAR
Print formatHeight/width from 1 to 8 cpi, bold, reverse, underlined, italicHeight/width from 1 to 8 cpi, bold, reverse, underlined, italicHeight/width from 1 to 8 cpi, bold, reverse, underlined, italic
Print direction0°, 90°, 180°, 270°0°, 90°, 180°, 270°0°, 90°, 180°, 270°
EmulationCUSTOM/POSCUSTOM/POSCUSTOM/POS
Data buffer16 kB16 kB16 kB
Flash memory2 MB2 MB2 MB
RAM memory640 kB640 kB640 kB
Print head life200 km / 100M pulses200 km / 100M pulses200 km / 100M pulses
Cutter life1,000,000 cuts1,000,000 cuts1,000,000 cuts
DriverWindows® (32/64 bit), CUPS Linux (32/64 bit), OPOS, Java POS, Status Monitor SDKWindows® (32/64 bit), CUPS Linux (32/64 bit), OPOS, Java POS, Status Monitor SDKWindows® (32/64 bit), CUPS Linux (32/64 bit), OPOS, Java POS, Status Monitor SDK
Software toolsPrinterSet, Custom Power Tool, Status Monitor, Custom Windows® API, Driver ManagerPrinterSet, Custom Power Tool, Status Monitor, Custom Windows® API, Driver ManagerPrinterSet, Custom Power Tool, Status Monitor, Custom Windows® API, Driver Manager
Special featuresMultiple versions, TG2460 bracket adapter, patented loop/presenter mode or present/retract mode, easy printer replacement, active anti-jam, energy-saving mode, paper-saving mode, optional wireless roll holderMultiple versions, TG2460 bracket adapter, patented loop/presenter mode or present/retract mode, easy printer replacement, active anti-jam, energy-saving mode, paper-saving mode, optional wireless roll holderMultiple versions, TG2460 bracket adapter, patented loop/presenter mode or present/retract mode, easy printer replacement, active anti-jam, energy-saving mode, paper-saving mode, optional wireless roll holder
Operating temperature-20°C ~ 70°C-20°C ~ 70°C-20°C ~ 70°C
Dimensions86 (W) x 58 (D) x 81 (H) mm86 (W) x 78.5 (D) x 89.5 (H) mm109.8 (W) x 99 (D) x 87.3 (H) mm
Weight0.33 kg0.34 kg0.45 kg
Package contentsDevice, quick guide. Presenter model: paper mouth.Device, quick guide. Presenter model: paper mouth.Device, quick guide. Presenter model: paper mouth.
Accessories
All accessories available for VKP60

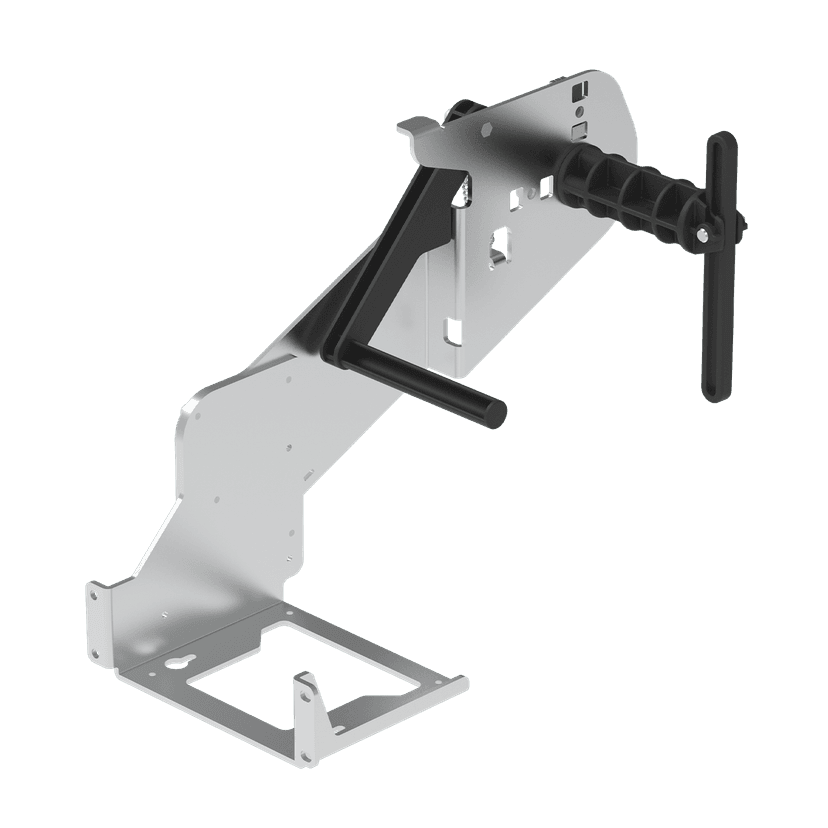

Portarotolo Jumbo
Portarotolo fino a 200 mm di diametro esterno

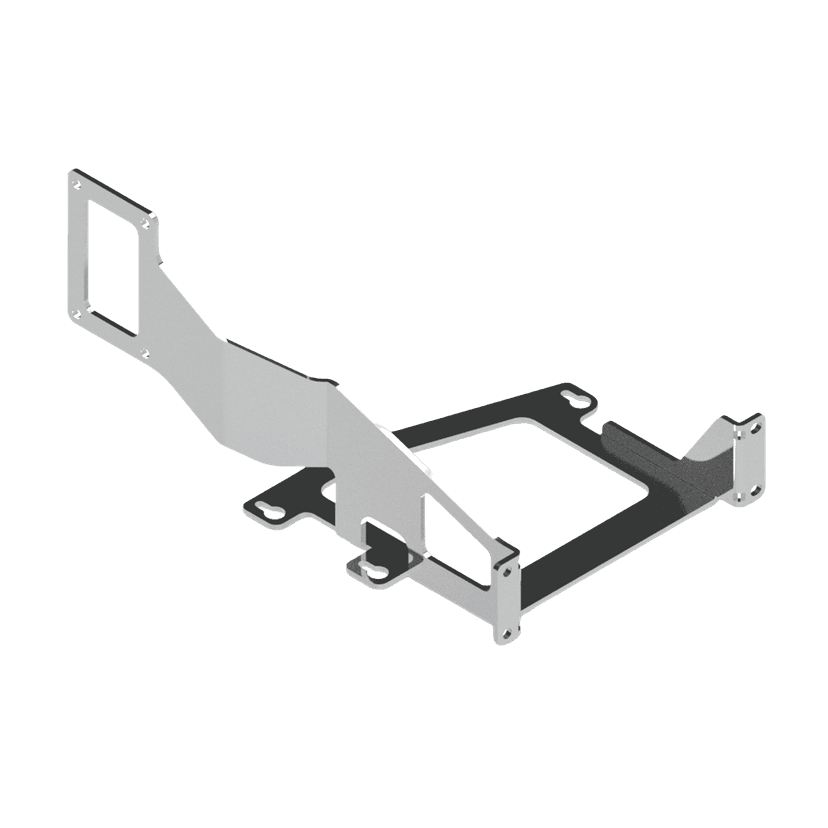

Staffa Presenter
Staffa portarotolo wireless VKP60 Presenter

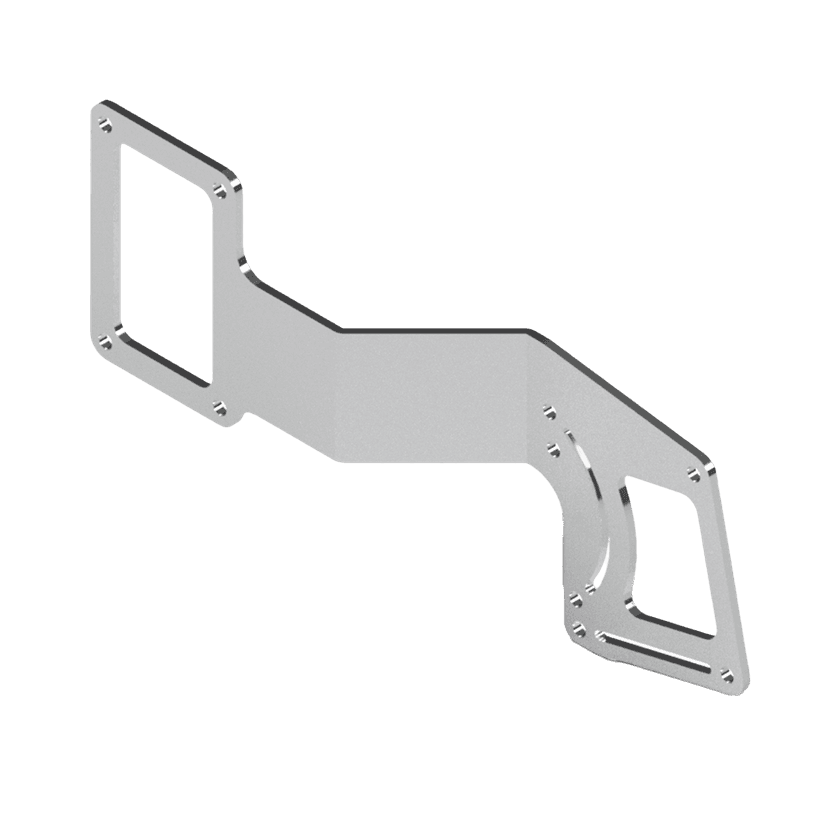

Staffa Compact
Staffa portarotolo wireless VKP60 Compact

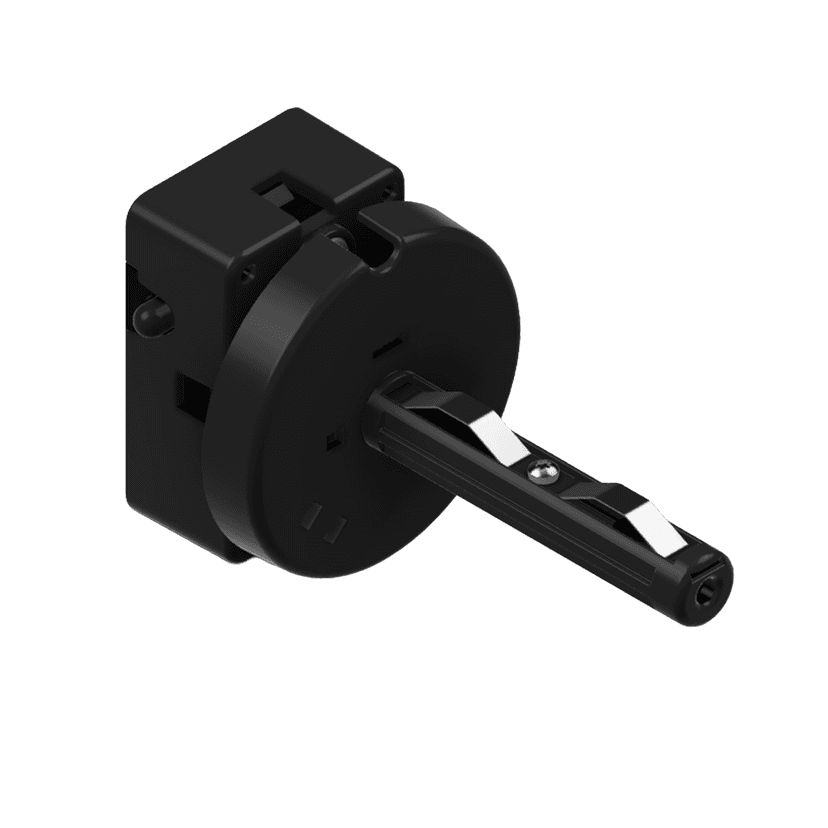

Portarotolo wireless
Portarotolo wireless VKP60

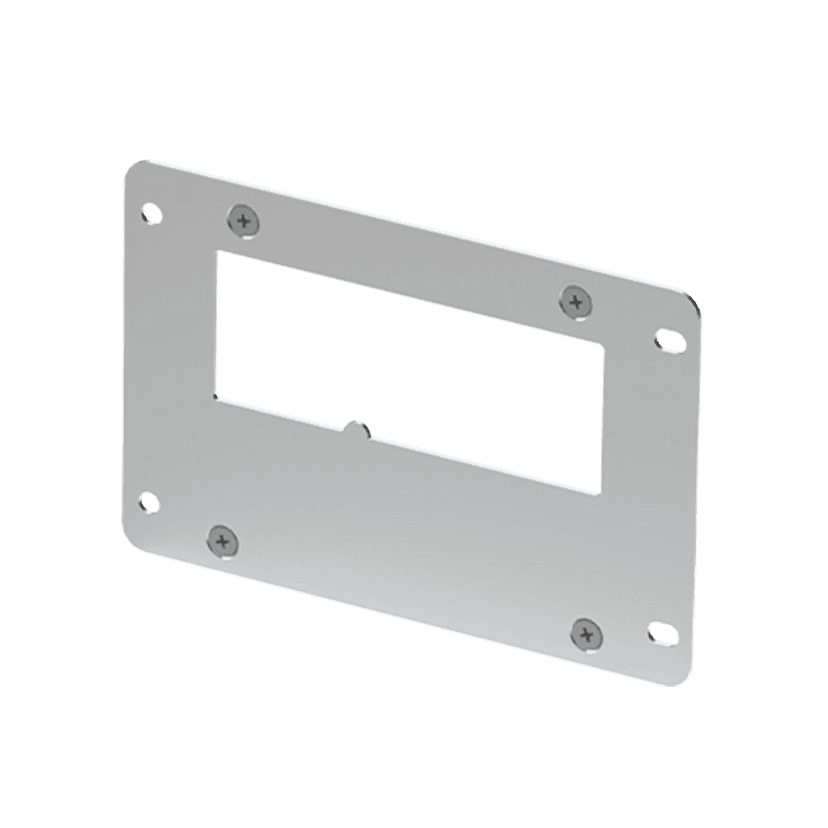

Kit di fissaggio VKP60
Kit di fissaggio VKP60 compatibile TG2460

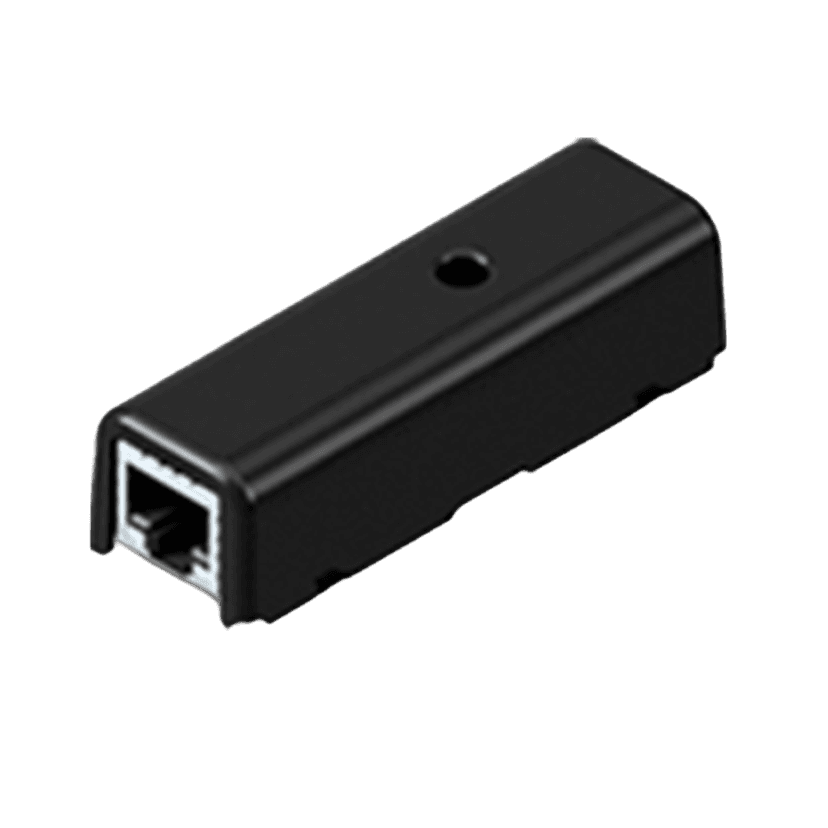

Dongle ETH VKP60
Dongle ETH VKP60

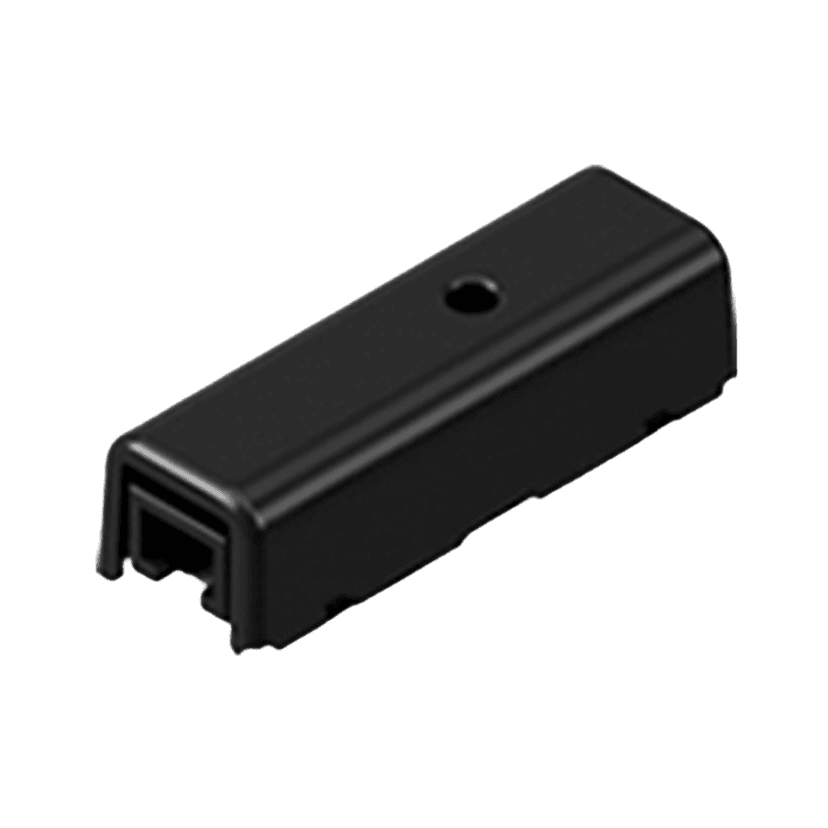

Dongle RS232 VKP60
Dongle RS232 VKP60

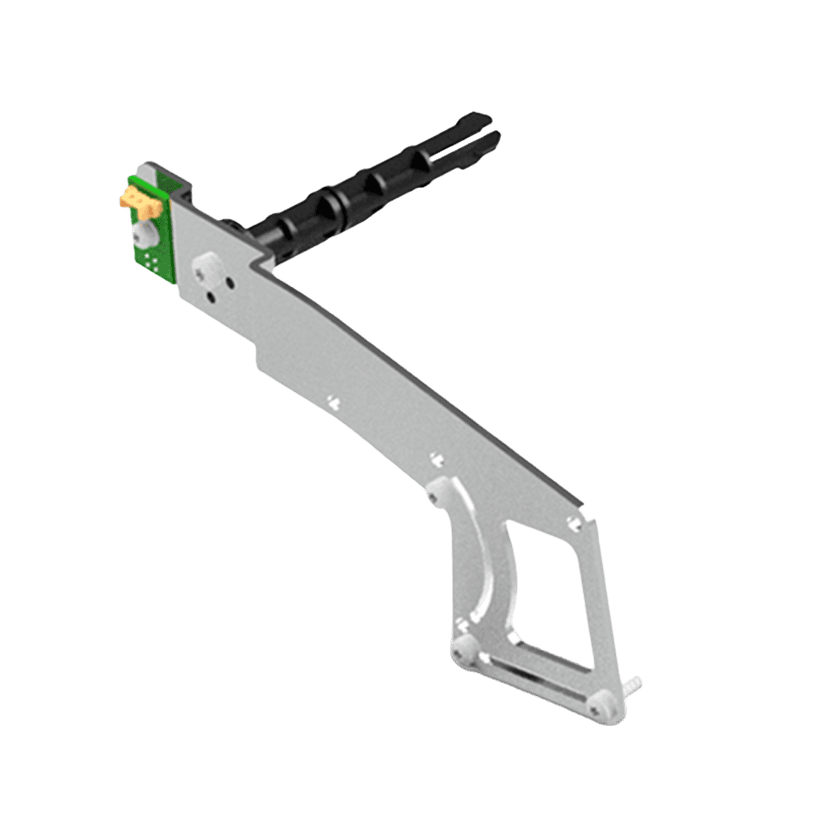

Staffa QFC
Staffa portarotolo VKP60 con QFC

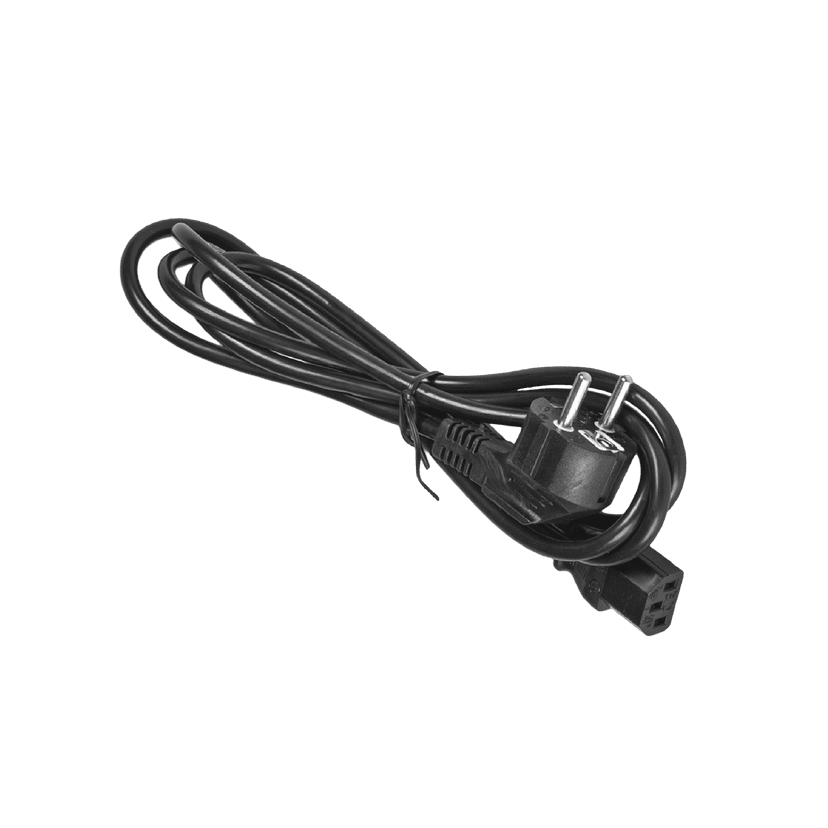

Cavo alimentazione Schuko
Cavo alimentazione Schuko

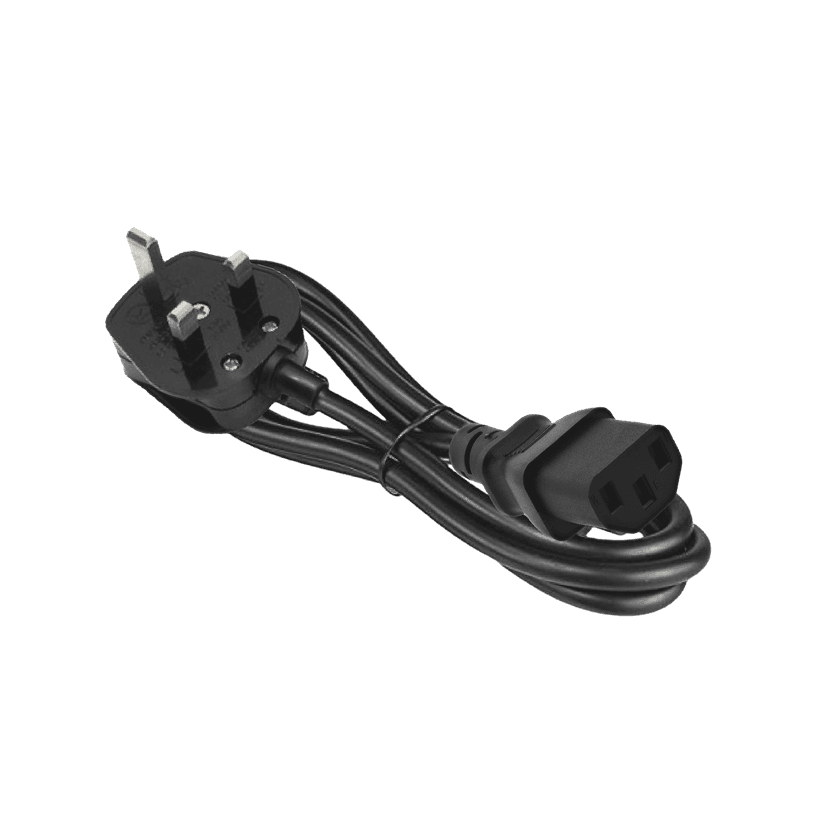

Cavo alimentazione GB
Cavo alimentazione GB

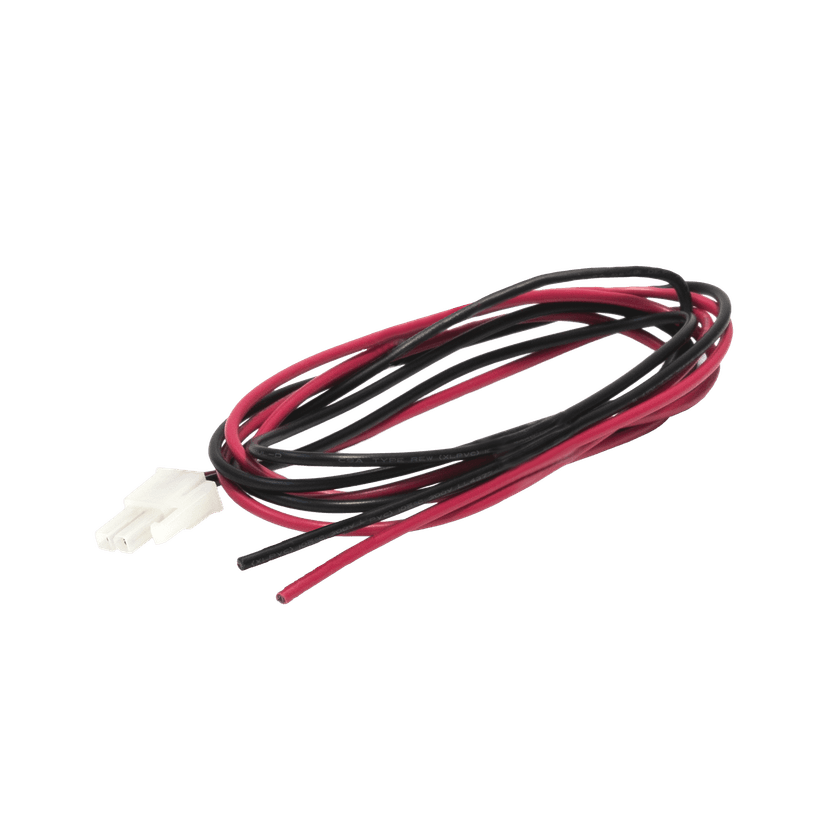

Cavo alimentazione 1m
Cavo alimentazione 1m

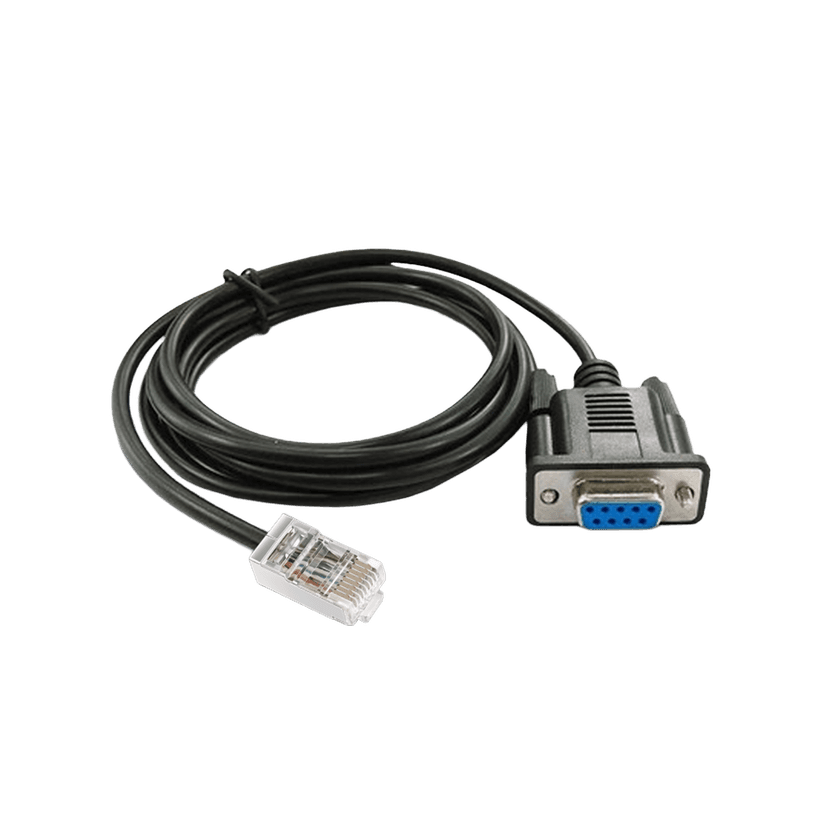

Cavo ETH seriale Rs232
Cavo seriale Rs232

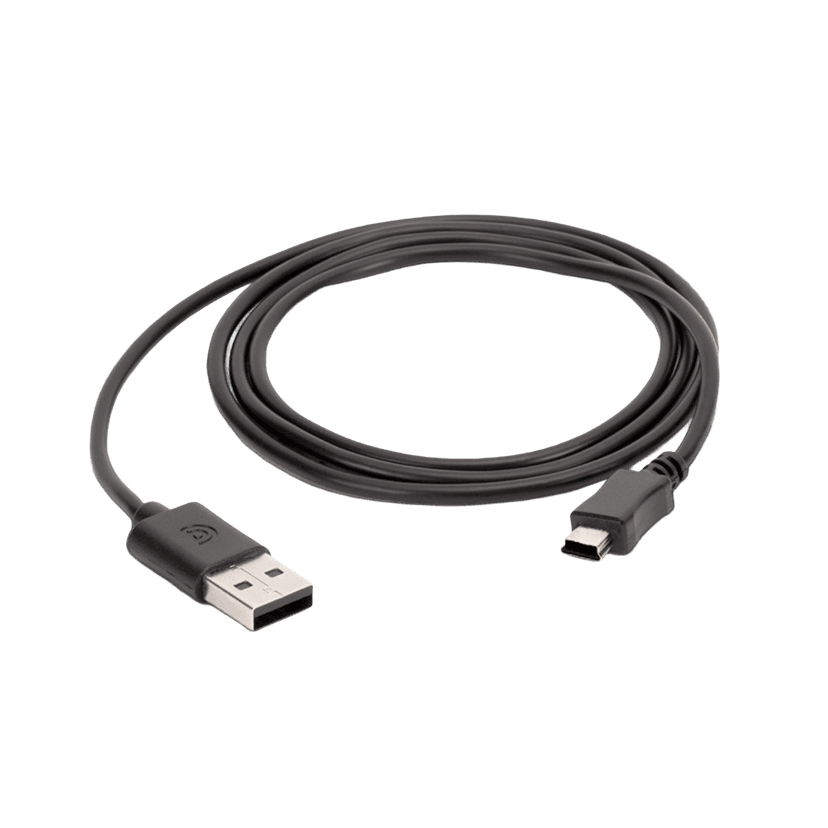

Cavo USB mini B
Cavo USB mini B

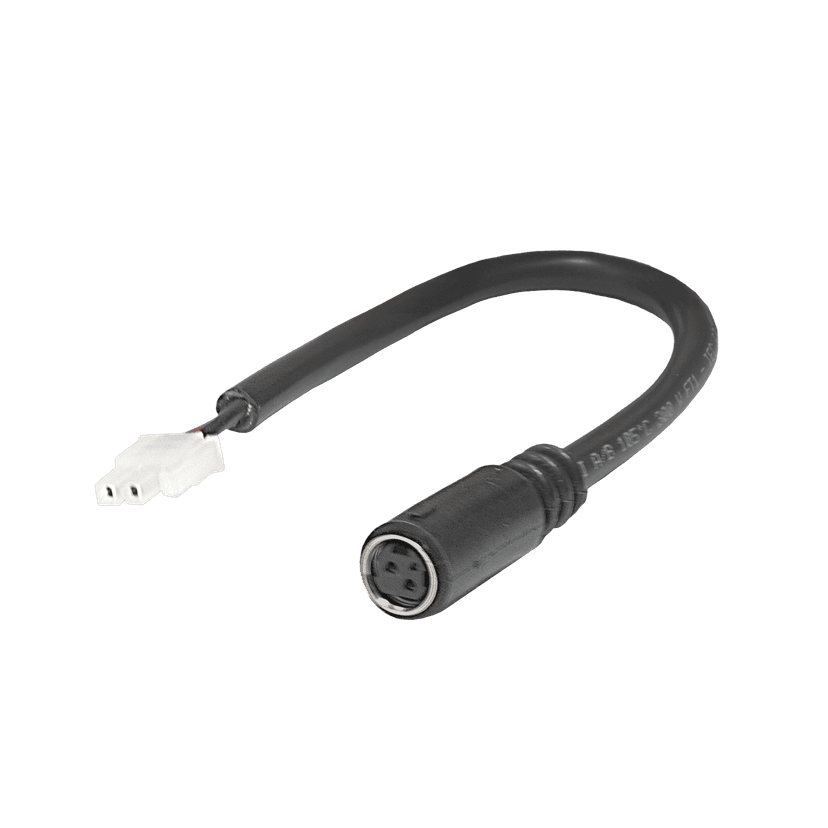

Adattatore alimentazione DIN
Adattatore alimentazione DIN

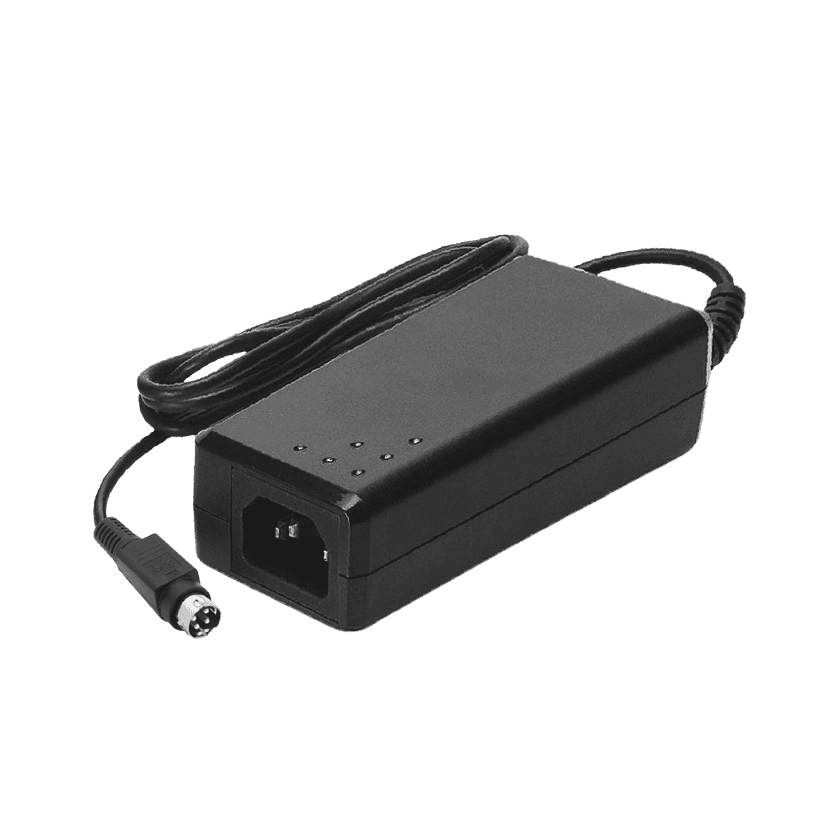

Alimentatore
Alimentatore 24V 60W connettore DIN
Related solutions
Discover combined or alternative solutions
Explore other Products, Software and Services to find the ones that best suit your needs.
Models
All available models
915NA010100300

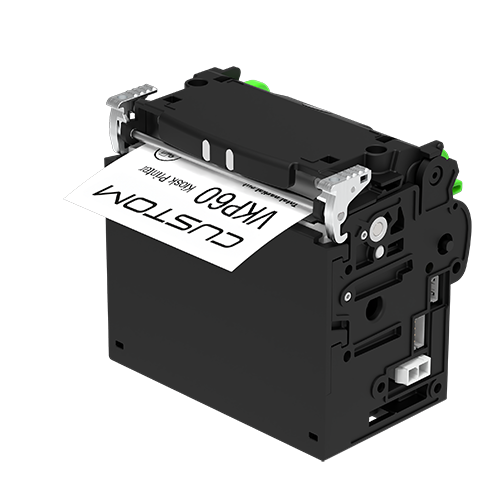

PRINTER VKP60 USB RS232 COMPACT
915NA020100300

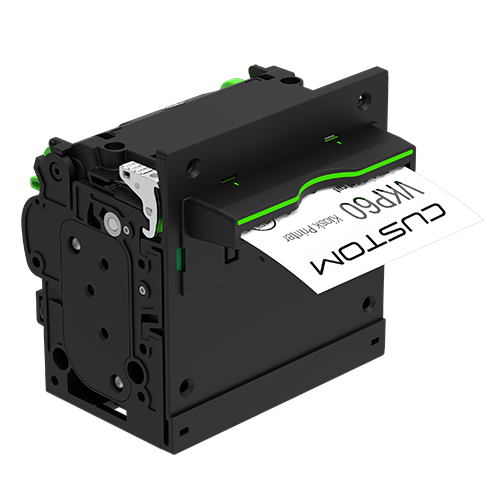

PRINTER VKP60 USB RS232 PAPER MOUTH
915NA030100300
PRINTER VKP60 USB RS232 PRESENTER
