Magnetic chip card systems
ICM 350
Manual hybrid magnetic + chip card reader
ICM 350
ICM 350 is the manual front-insertion reader for magnetic cards with triple track (ISO/IEC 7811).
Galleria

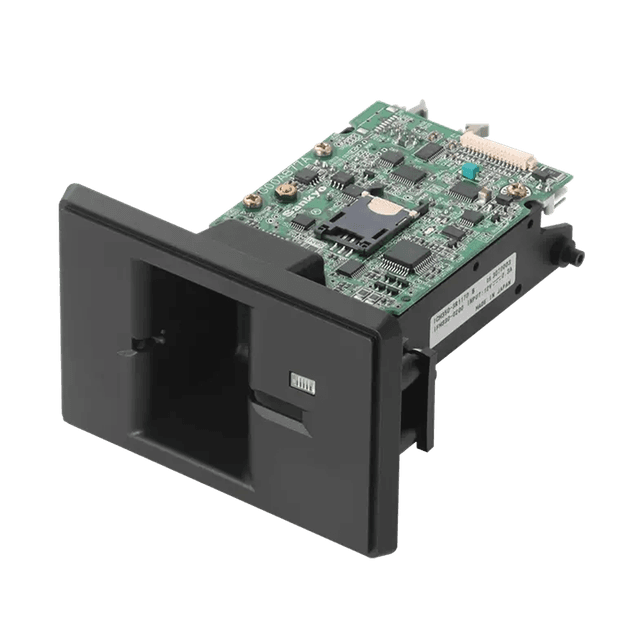

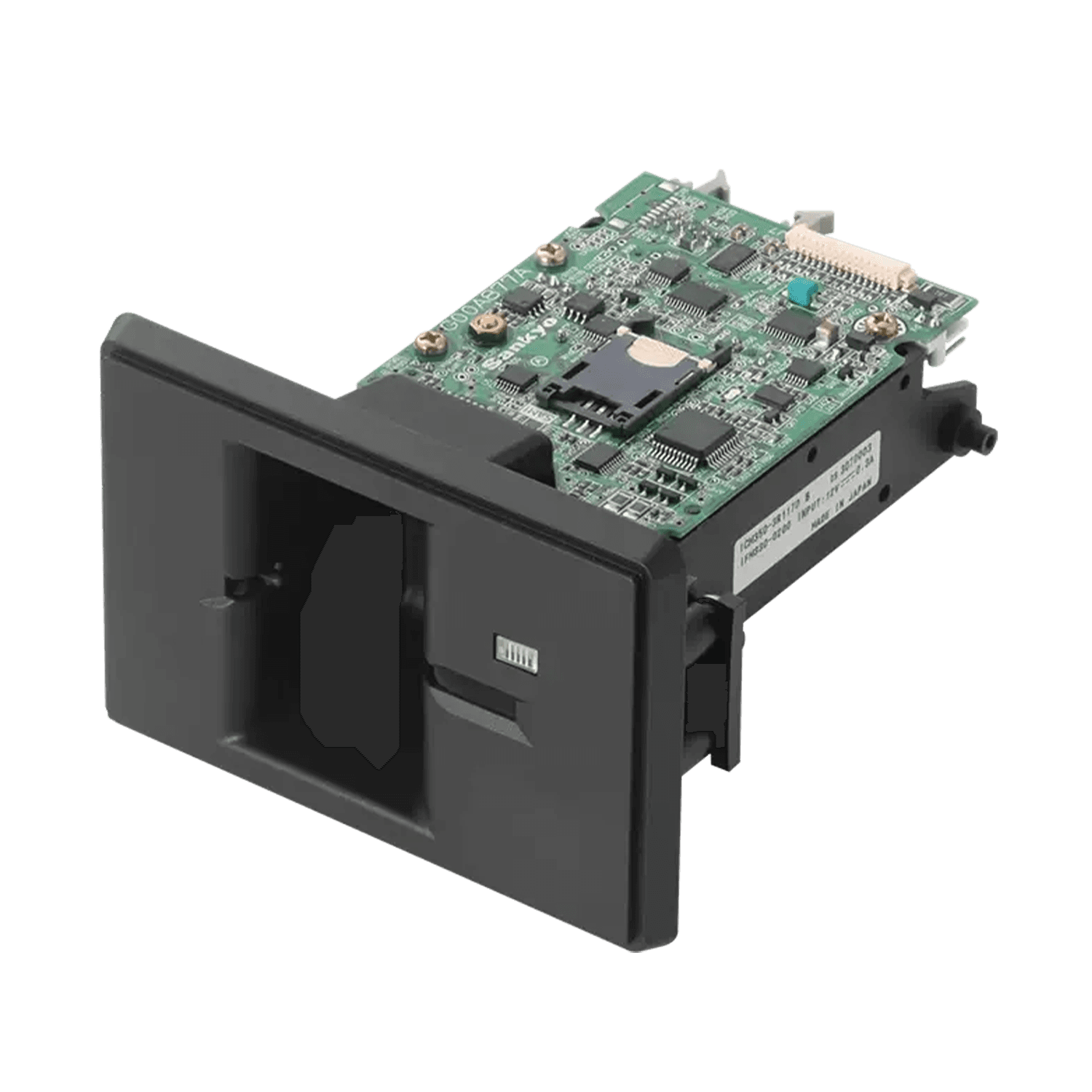

ICM 350 from every angle
Technical sheet
Technical sheet
| Type | Manual |
|---|---|
| Magnetic Stripe | Reading 3 tracks |
| IC Contact | Read/Write (protocol T=0 and T=1) |
| EMV Certified | Approval EMV 2000 Vers. 4.0 |
| Shutter | Manual plastic shutter anti-dust and anti-insertion of foreign objects |
| Interfaces | USB 2.0 (3R1395 model) Serial RS232 (3R1270 model) |
| Memory card | GPM896, SLE4442, SLE4428, I2C (24C01~24C256) The other cards are optional |
| SAM modules | 1 SAM module on board (expandable up to 4 external SAM modules) |
| Tool software | DLL available |
| Device Rating | Input voltage 12V / 0,4A typ. -20 / +50 °C temp. 10 - 95 U.R. without condensation |
| MCBF | Mag.: 500K IC Card: 500K (internal use condition) |
| Dimensions | 107.7 x 139 x 75.7 mm |
| Weight | 185 gr |
Models
All available models
942BT081100333
CARD READER ICM350-3R1395 R-W USB FLAT BEZEL
942BT150200100
CARD READER ICM350-3R1270 R-W FLAT BEZEL
