Self Check-In Printers
KPM180H
Compact Self-Service Check-In Kiosk Printer
KPM180H
Extremely compact and reliable, Same model for ATB and BTP, Powerful autocutter, RFID (optional), Damage Dot Prevention, Automatic ticket length detection, Complete paper auto-loading without waste, and supports linerless baggage labels.
Key points
KPM180
ATB/BTP all-in-one
A single model for boarding passes and baggage tags.
Compact and reliable
Compact, robust design suitable for intensive operational environments.
Powerful autocutter
Reliable cutting with automatic ticket length detection.
Waste-free loading
Full auto-loading and support for linerless labels.
Airport standards
Compatible with CUTE/CUPPS, AEA/ITPS 2007-2022 and ATB, BTP, GPP emulations.

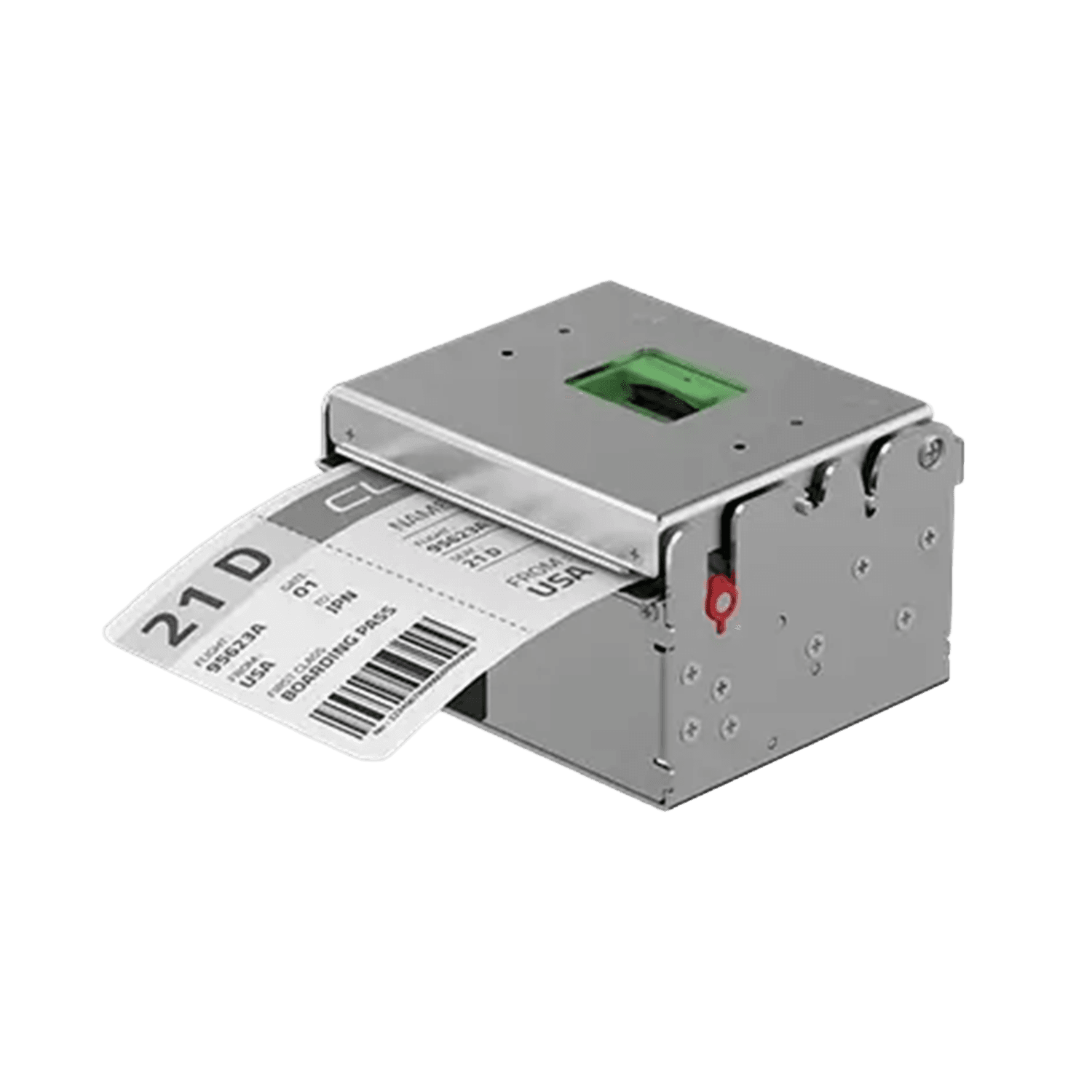

Galleria
KPM180H from every angle
Technical sheet
Technical sheet
| Metodo di stampa | Termica a testina fissa |
|---|---|
| Risoluzione | 200 dpi (8 dots/mm) |
| Velocità di stampa (max.) | 125 mm/sec |
| Larghezza carta | 194-216 mm |
| Grammatura carta | 58-78 g/m² |
| Diametro esterno rotolo | 180 mm |
| Diametro anima rotolo | 25 mm |
| Sensori | Presenza carta; temperatura testina; presenza carta in uscita; black mark; coperchio aperto; quasi fine carta opzionale; errore taglierina automatica |
| Emulazione | CUSTOM/POS |
| Interfacce | RS232; USB; Ethernet |
| Driver di stampa | Windows® (32/64 bit); CUPS Linux (32/64 bit); Virtual COM; Android™; iOS |
| Strumenti software | PrinterSet; CustomPowerTool; Status Monitor; Custom Windows® API; Driver Manager |
| Caratteristiche speciali | Formato A4 o US Letter; prevenzione dei dot danneggiati |
| Alimentazione | 24 Vdc ± 10% |
| Consumo tipico | 3,1 A |
| Vita testina | 100 km / 100M impulsi |
| Taglierina | Taglio totale |
| Vita taglierina | 300.000 tagli |
| Temperatura di funzionamento | 0°C ~ 50°C |
| Dimensioni (P x L x A) | 170 x 274 x 84 mm |
| Peso | 3,76 kg |
| Contenuto confezione | Dispositivo; guida rapida; sensore NPE; cavo NPE; staffe di fissaggio con viti; cablaggio del cavo di alimentazione |
Models
All available models
915AH021300700
PRINTER KPM180H ETH USB RS232 CUT AVIATION
915AH021000700
PRINTER KPM180H RFID UHF ETH USB RS232 CUT AVIATION
915AH031200700
PRINTER KPM180H LL CUT PRES INTEGRATED RFID UHF AVIATION
915AH030200700
PRINTER KPM180H LL ETH USB RS232 CUT PRES AVIATION
915AH030700700
PRINTER KPM180H LL RFID UHF ETH USB RS232 CUT PRES AVIATION
