Customer Display
XD CUSTOMER DISPLAY
Customer display with a modern and elegant design
XD CUSTOMER DISPLAY
Display cliente CUSTOM XD with innovative, modern, and elegant design that aesthetically complements the range.
Galleria

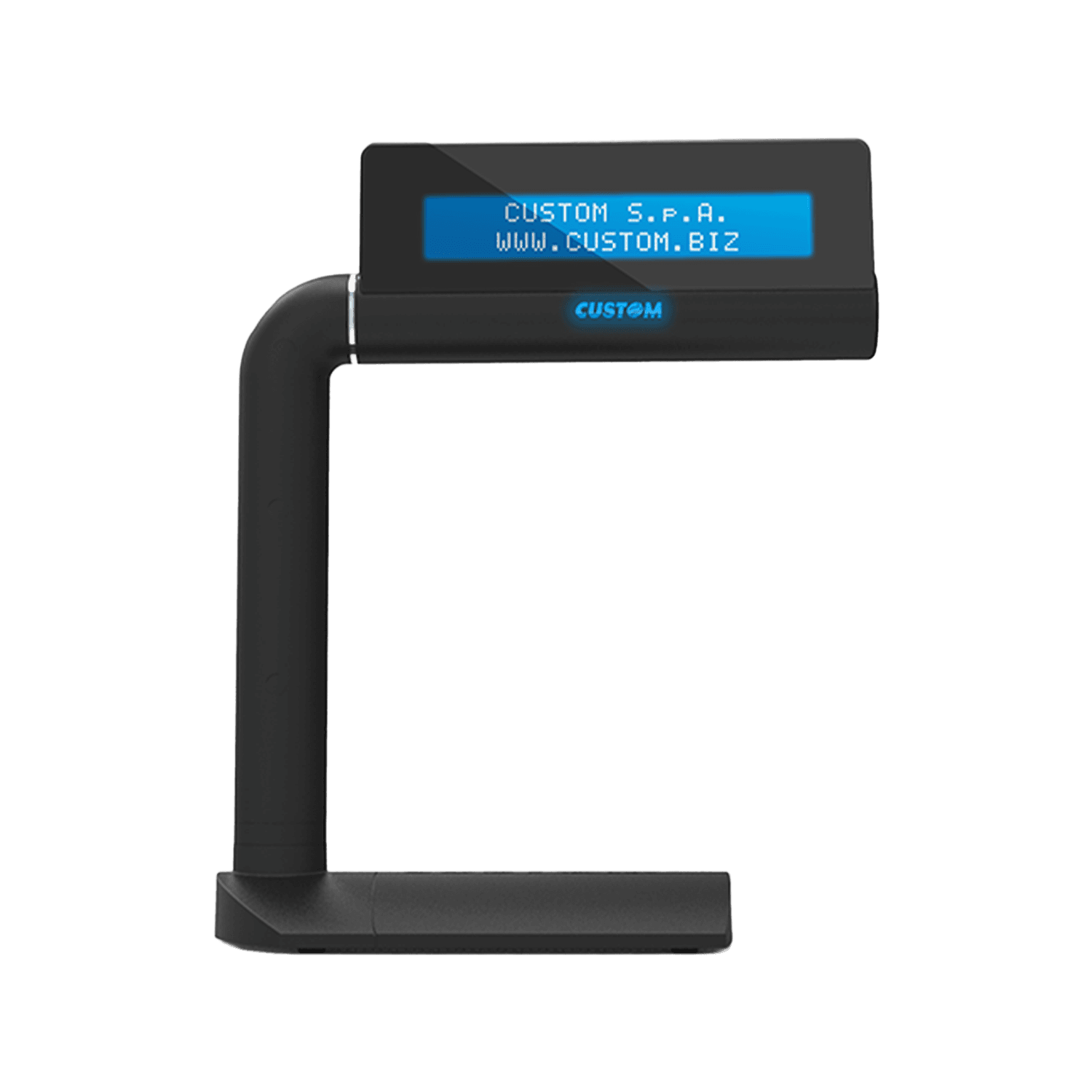

XD CUSTOMER DISPLAY from every angle
Technical sheet
Technical sheet
| Display method | Backlit liquid crystal display |
|---|---|
| Number of characters | 40 (20 columns x 2 lines) |
| Background colour | Blue |
| Character set | 96 alphanumeric; 12 international |
| Character font | 5 x 8 dot matrix |
| Character size | 6 mm x 9.66 mm |
| Character pitch | 7.2 mm x 10.98 mm |
| Space between characters | 1.2 mm |
| Space between rows | 1.32 mm |
| Viewing angle | 8-35° |
| Rotation angle | 360° |
| Inclination angle | 5° |
| Interfaces | 9 pin serial, RJ45 serial |
| Power supply | 11÷ 26 Vdc ± 10% |
| Medium consumption | 0.18A (single sided); 0.3A (double sided) |
| MTBF | 70,000 hours (electronic board) |
| Weight | 1,3Kg |
Models
All available models
932GB030100133
CUSTOMER DISPLAY XD DOUBLE
932GB010100133
CUSTOMER DISPLAY XD SINGLE
