QD5
QD5 is the 5" graphic customer display with USB, RS232, and VGA interfaces, supporting a resolution of 800*480. It supports multiple languages and is suitable for various applications such as food trucks, restaurants, clothing stores, and retail outlets. QD5 also provides digital signage functionalities to deliver advertising and promotional messages to customers at checkout and The QD5 display is integrated into Custom's Keep Up Smart suite for managing the digitalization of commercial documents. This device enables the digitalization of receipts by scanning the QR code with a mobile device, such as a smartphone.
Galleria

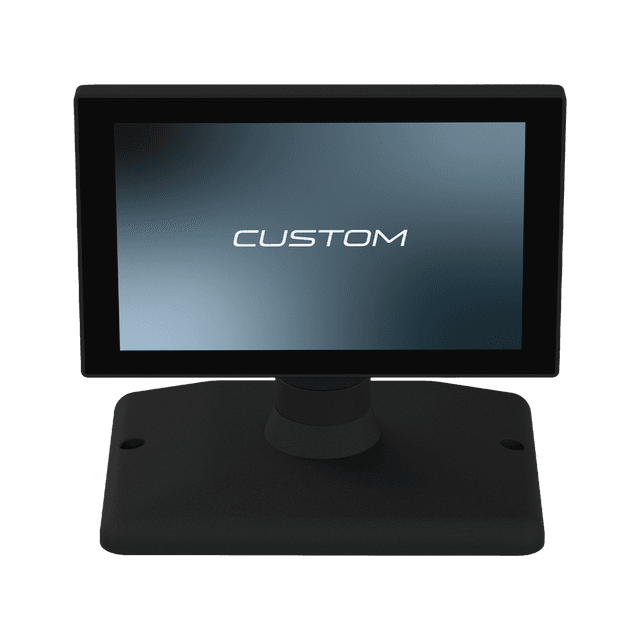

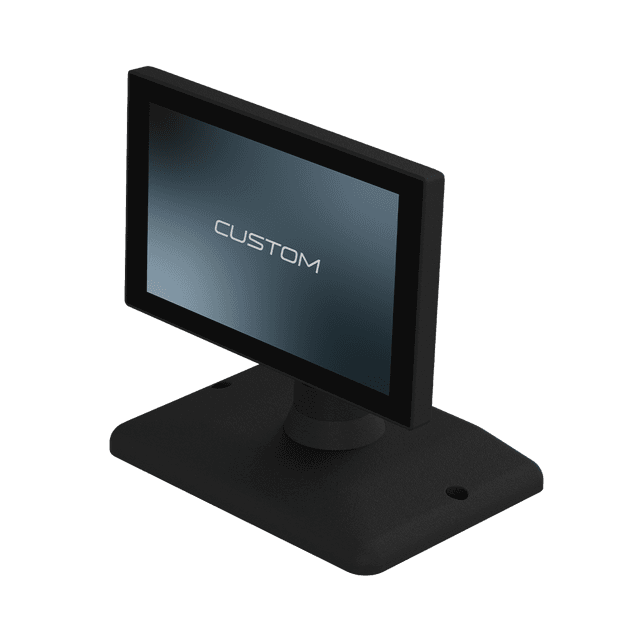

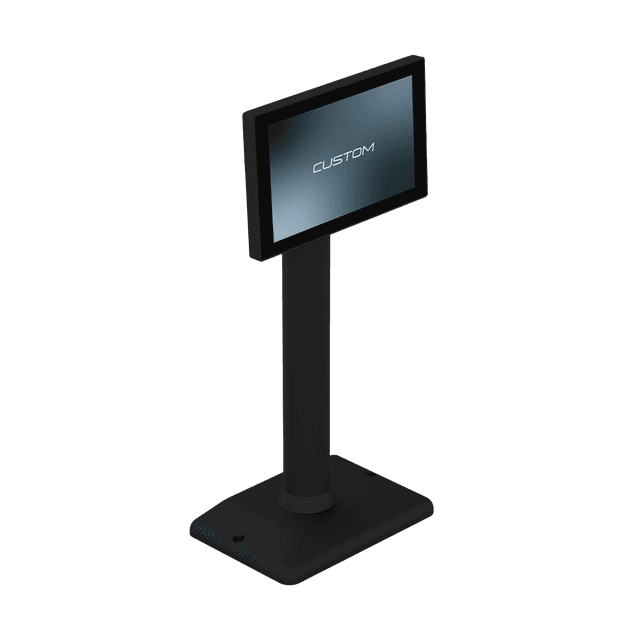

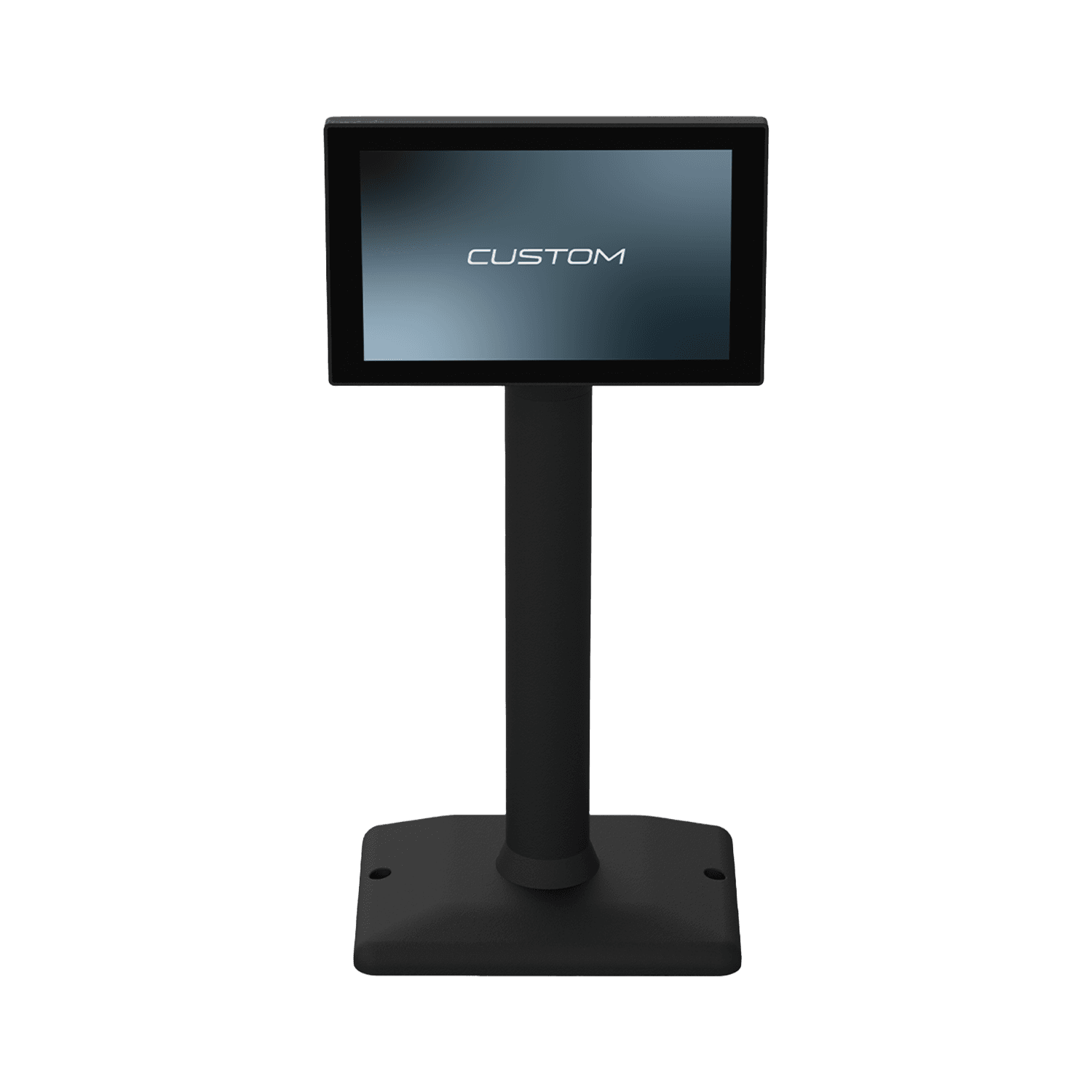

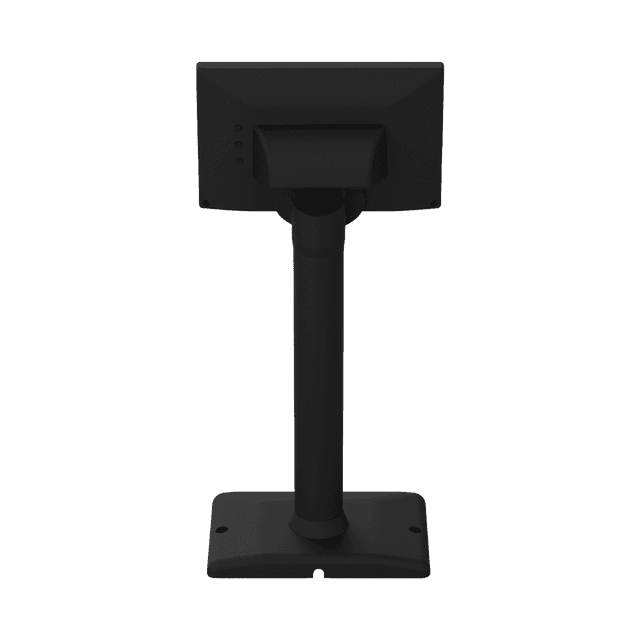

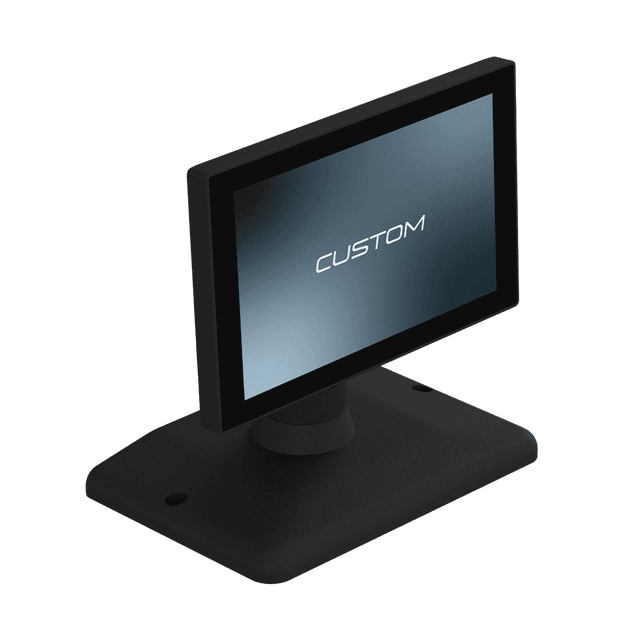

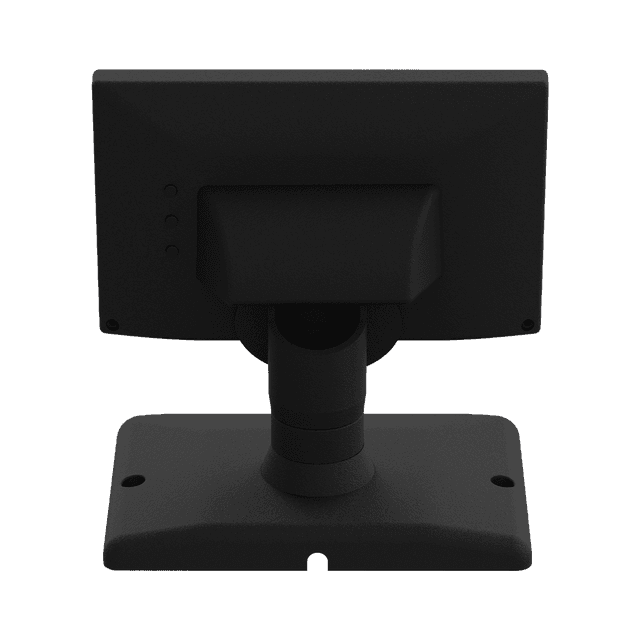

QD5 from every angle
Technical sheet
Technical sheet
| Display method | TFT - LCD display (5-inch color panel) |
|---|---|
| Pattern | 20 columns x 2 rows / 20 columns x 4 rows, Full screen images in standby |
| Brightness | >350 cd/m2 |
| Resolution | 800*480 |
| Character | 40*80 dot matrix |
| Character type | 95 alphanumeric characters, 32 international |
| Font size | 10.8 mm (H) x 5.4 mm |
| Dot size (X×Y) | 0,135 mm x 0,135 mm |
| Active area | 108 mm (W) x 24.8 mm |
| Pole size | 163 mm (W) x 27.65 mm (ø) / 80 mm (W) x 27.65 mm |
| Base size | 126 mm (W) x 89 mm (D) x13.5 mm |
| Viewing angle | max. 135° |
| Horizontal rotation | max. 355° |
| Weight | 490 g |
| Control mode | LD220, ESC/POS, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL |
| Language support | CP437, Katakana, CP850, CP860, CP863,CP865, WCP1252, CP857, WCP1250, WCP1253,WCP1255, WCP1251, CP866, CP852, CP737, CP858, CP864,WCP1257, WCP1258, Tai (CP874), CP936 |
| Interface | USB, RS232, VGA |
Models
All available models
932AD020100333
CUSTOMER DISPLAY QD5 5" SINGLE BLACK
