QD2
QD2 represents the latest evolution of Custom's customer display. Now available with two different interfaces, USB 2.0 full speed and RS232 (only for fiscal printers), it can be connected to any POS PC. The display is based on backlit liquid crystal technology, and the 40 characters available (20 x 2 lines) allow you to create the desired phrases, messages, and drawings on the display. The device is upgradable and configurable with PrinterSet software. Thanks to the included extension tube, the QD2 is adjustable in both high and low versions.
Galleria

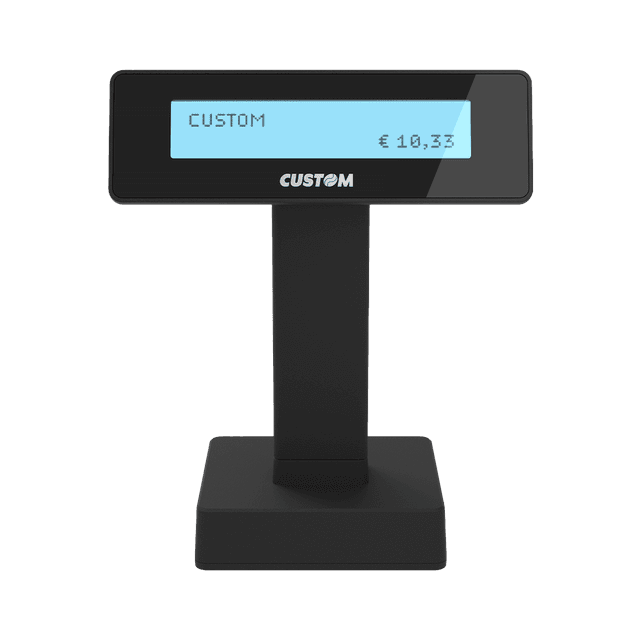

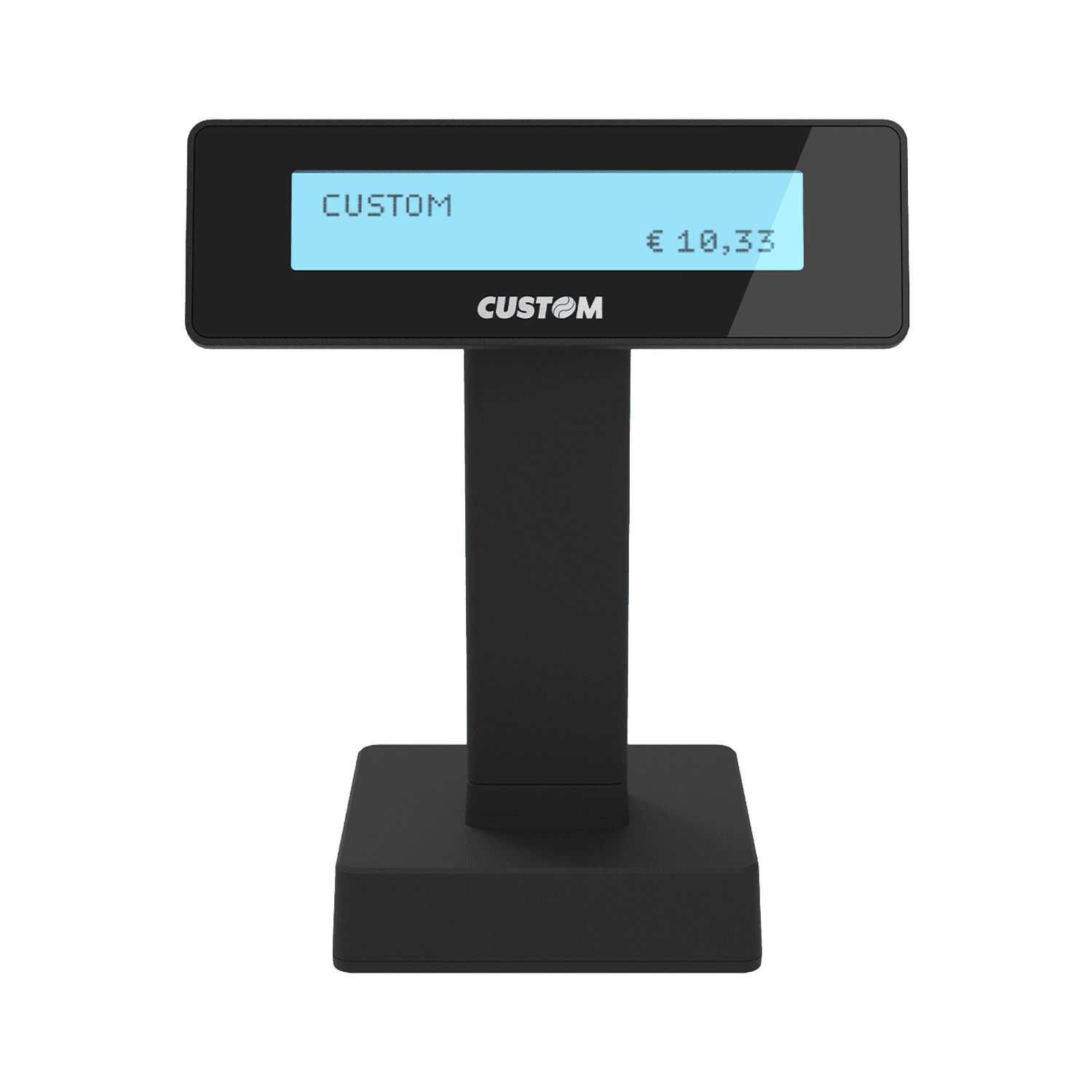

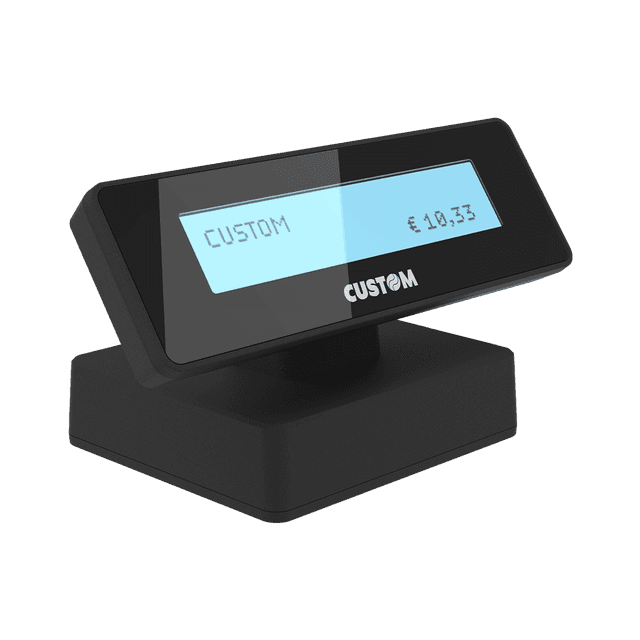

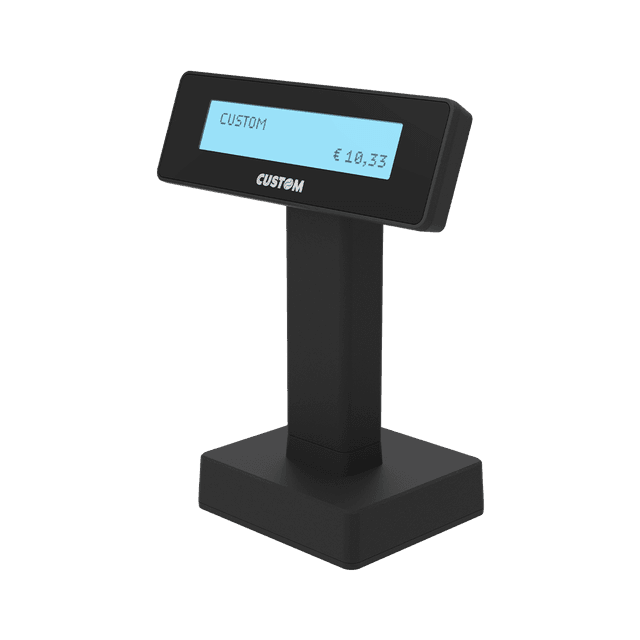

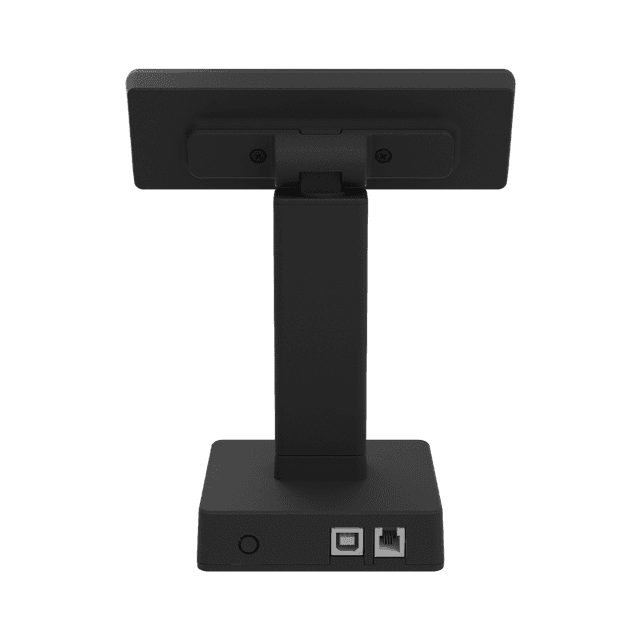

QD2 from every angle
Technical sheet
Technical sheet
| Available interfaces | USB 2.0 Full speed / RS232 (fiscal printers only) (9600 bps to 115200 bps) |
|---|---|
| Emulations | ESC/POS, LOGIC CONTROL, UTC STANDARD, UTC ENHANCE, EMAX, AEDEX, CD5220, LD220,ADM788, DSP800 |
| Panel size | 132 x 29 dots |
| Display method | Backlit liquid crystal display |
| Number of characters | 40 (20 x 2 lines) |
| Background color | White |
| Inclination angle | From 5° to 55° |
| Longitudinal rotation | -64°, +64° (2 directions) |
| Character set | up to 3 |
| Character size | 5 x 9 dot matrix |
| Power supply | USB port: 5 V Serial port: from 12 to 24 Vdc ±10% |
| Operating temperature | From -0°C to +50°C |
| Dimensions | 150 mm (W) x 84 mm (D) x 80 mm (H) Tall version: 150 mm (W) x 84 mm (D) x 183 mm (H) |
| Weight | 190 g Tall version: 222 g |
Models
All available models
932GA030100J33
CUSTOMER DISPLAY QD2 SINGLE BLACK
