QD CUSTOMER DISPLAY
The new graphic Customer display CUSTOM QD in design and features. Innovative in design and construction material, specifically designed and manufactured to match all printers in the Custom family. The graphic LCD technology allows you to create phrases, messages, and drawings on the display at will. The telescopically adjustable tower allows positioning at the correct height for proper reading by the operator and the customer. Blue backlit graphic LCD display designed specifically for ECR and POS systems. It features a serial interface RS232, and the display is powered directly from the CUSTOM printer (optionally, it can be equipped with a serial cable and power supply for direct connection to a PC).
Galleria

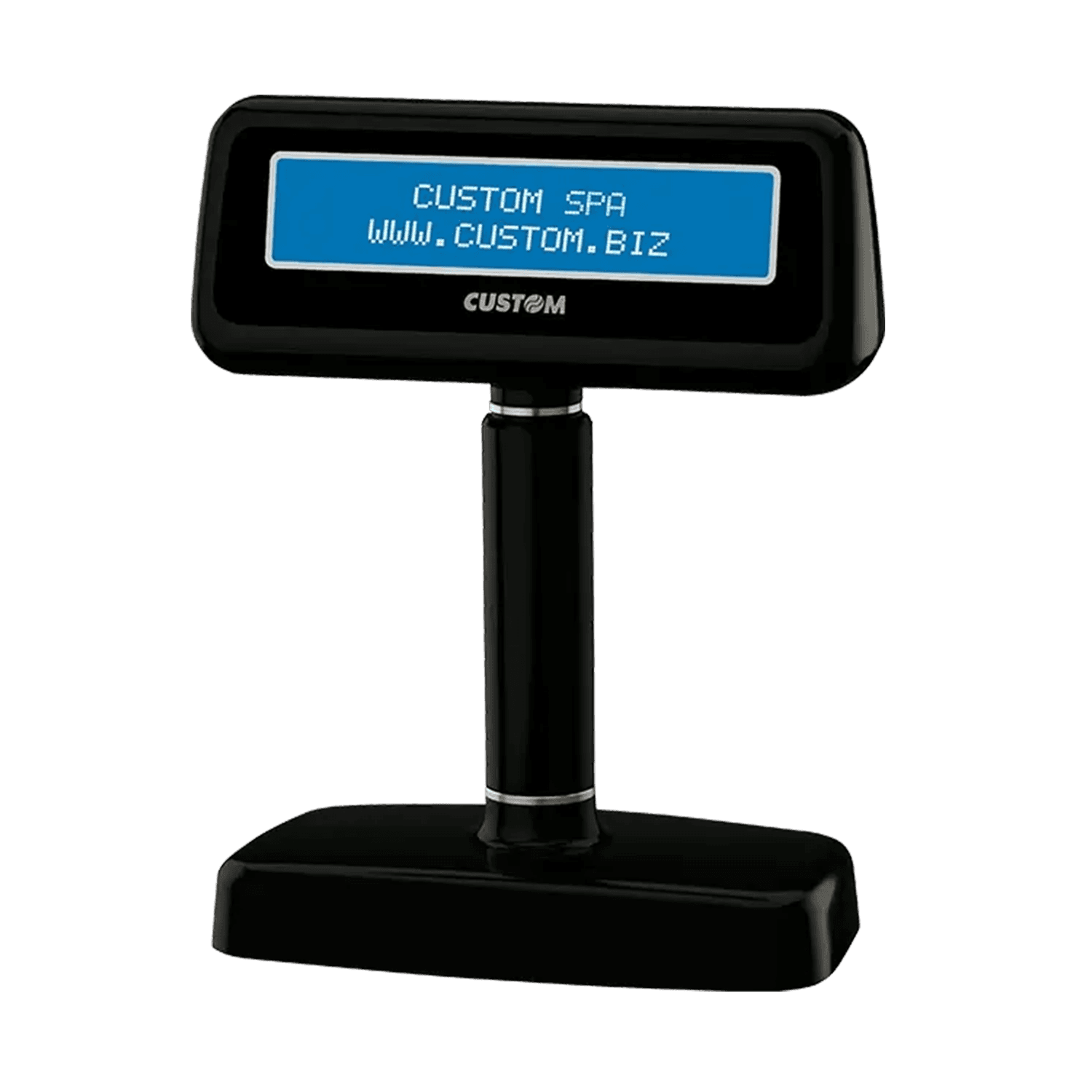

QD CUSTOMER DISPLAY from every angle
Technical sheet
Technical sheet
| Display method | Backlit liquid crystal display |
|---|---|
| Number of characters | 40 (20 columns x 2 lines) |
| Background colour | Blue |
| Character set | 96 alphanumeric; 12 international |
| Character font | 5 x 9 dot matrix |
| Character size | 3.25mm x 5.85mm |
| Character pitch | 3.90 mm x 5.85 mm |
| Space between characters | 0.65 mm |
| Space between rows | 4 mm |
| Emulation | ESC/POS, CD5220 |
| Viewing angle | 8-35° |
| Rotation angle | -60°, +60° (2 directions) |
| Interfaces | Serial RS232 |
| Power supply | 11÷ 26 Vdc ± 10% |
| Medium consumption | 20 mA (working) |
Models
All available models
932GA020100133
CUSTOMER DISPLAY QD DOUBLE BLACK
