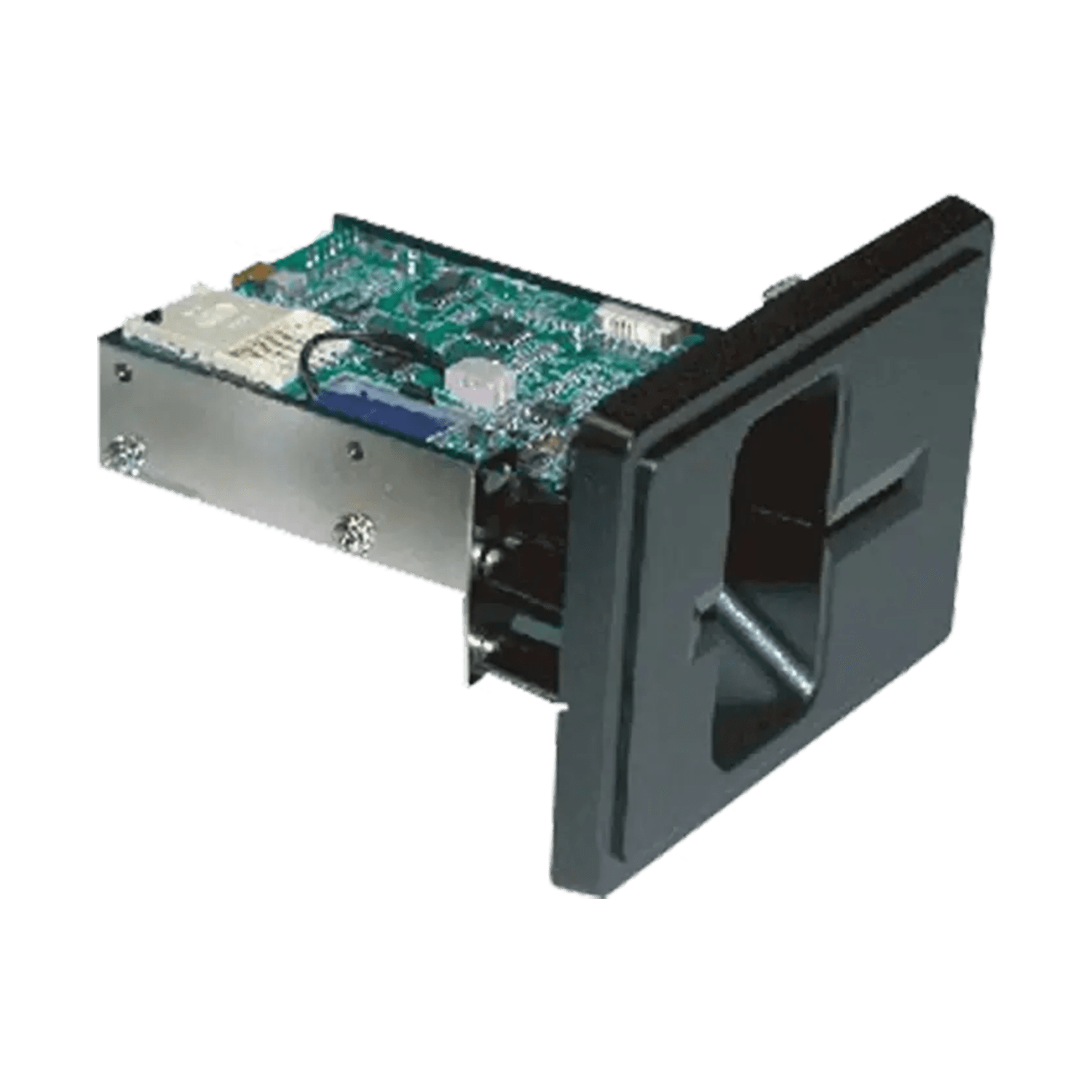

HCR 335
HCR 335 is Custom’s hybrid reader designed for self-service applications, payment systems, ticketing machines and kiosks. It combines manual triple-track magnetic card reading with chip card reading/writing in a single compact, reliable and versatile device. Thanks to EMV 3.1 approval, support for the most widely used memory cards and the Power Down function, HCR 335 ensures operational continuity and security even in the event of a sudden power failure.
Key points
HCR 335
Complete hybrid reading
supports ISO 7811 triple-track magnetic cards and ISO 7816 chip cards.
EMV 3.1 approved
compliant with the standards required for payment applications.
Compatible with widely used memory cards
supports SLE4428 and SLE4442 cards.
Advanced operational safety
Power Down function to release the card in case of sudden power failure.
Ideal for self-service systems
designed for kiosks, ticketing machines, payment systems and automated applications.
Galleria
HCR 335 from every angle
Technical sheet
Technical sheet
| Type | Manual insertion |
|---|---|
| Magnetic | ISO 7811 |
| Smart card | ISO 7816 Read/Write (T=0 / T=1 protocol) |
| Card thickness |
0,76 ± 0,08 mm |
| Interface | USB (cable included) |
| SAM modules | N/A |
| Power supply |
+5Vdc +/-5% |
| Power consumption | 10 mA max. magnetic only; 90 mA max. magnetic + IC card |
| Operating range |
-10 / +55 °C; 10 to 85 RH |
| MCBF | Mag. Head 500K / IC landing 500K |
| Dimensions |
111 mm (L) x 101 mm (P) x 76 mm (H) |
| Certifications | FCC class A, CE class A, BSMI class A, EMV level 1 |
Models
All available models
942BT150500133
CARD READER HCR335 RS232 M BEZEL BLACK
