SCANMATIC
SCANMATIC is the range of professional barcode scanners 1D (SM410) and 2D (SM420)
Galleria

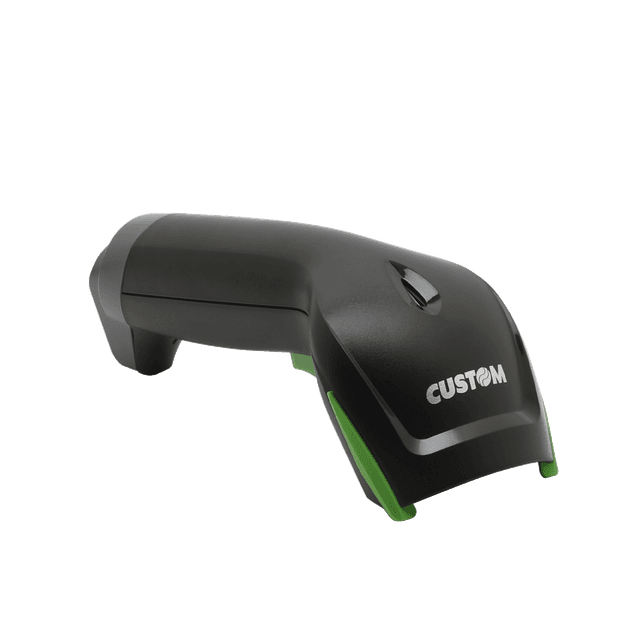

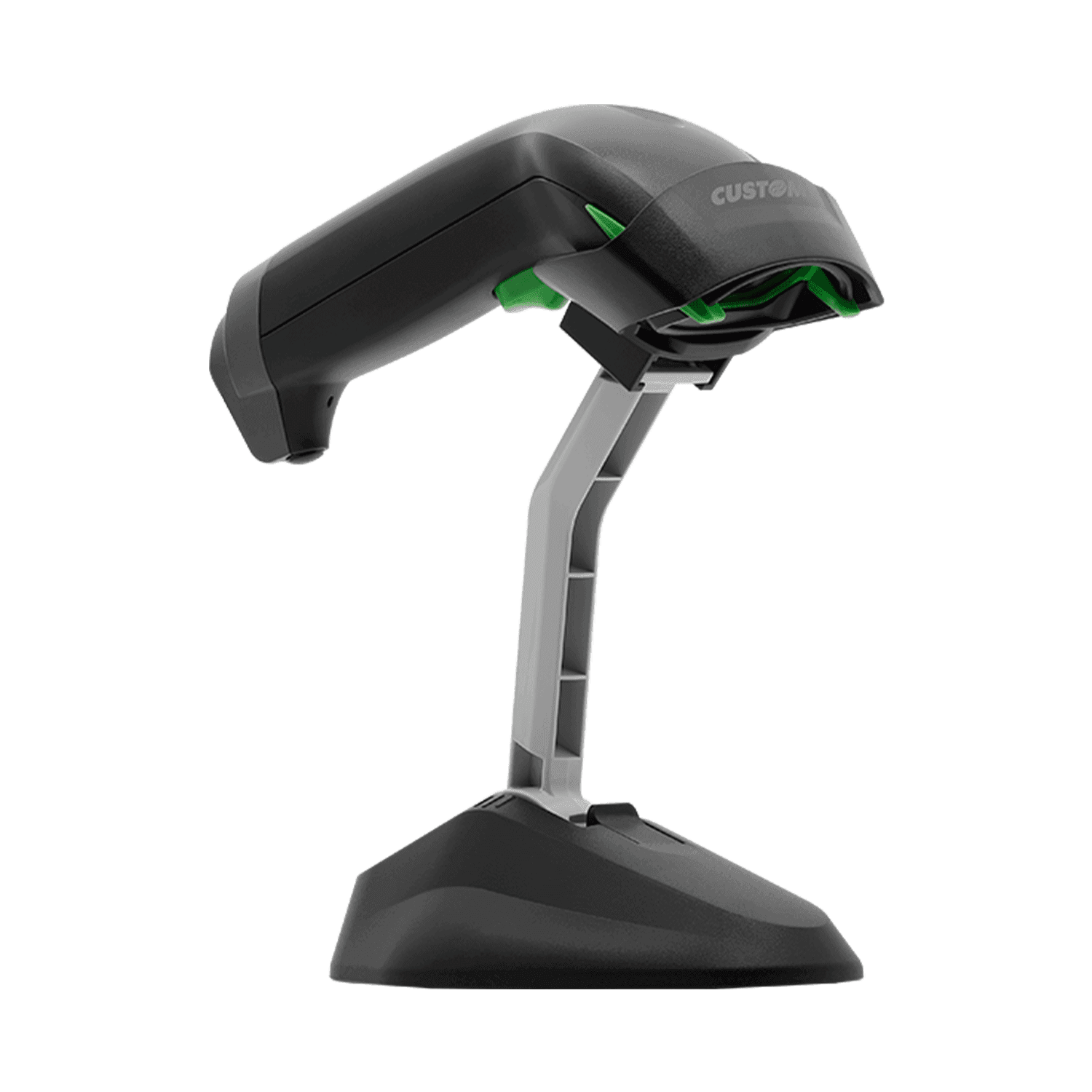

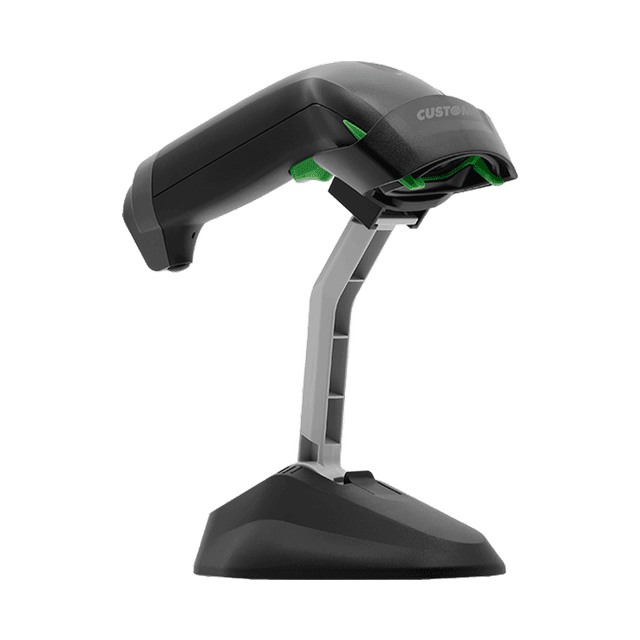

SCANMATIC from every angle
Technical sheet
Technical sheet
| 1D | 2D | ||||
|---|---|---|---|---|---|
| SM410 | SM420 | ||||
| Interfaces | USB, USB HID, VCOM, RS232 | USB, USB HID, VCOM | |||
| Supported Barcodes | All UPC / EAN / JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code 32/Italian Pharmacy, Code 128, CODABAR / NW7, Interleave 25, Industrial 25, MSI / PLESSEY, Code 93, GS1 DataBar Omnidirectional & Stacked, GS1 DataBar Limited, GS1 DataBar Expanded & Stacked | 1D: UPC-A, UPC-E, EAN-8 / JAN-8, EAN-13 / JAN-13, Code 39, Code 128, Interleaved 25, Industrial 25, Matrix 25, Codabar / NW7, Code 93, China Posta, MSI / Plessey, Telepen, GS1 Databar Omni-direzionale, GS1 Databar Limited, GS1 Databar Expended Opzione: Aztec, Micro PDF 417, Micro QR Code, Han Xin Code, GM Code 2D: Data Matrix, PDF 417, QR Code Option: Aztec, Micro PDF 417, Micro QR Code, Han Xin Code, GM Code |
|||
OPTICAL |
|||||
| Optical sensor | CCD linear sensor | CMOS sensor | |||
| Light | LED red light 635±5nm | LED white leg | |||
| Resolution | 4mil / 0.1mm @ PCS90%, Code39 | 3 mil / 0.076mm @ PCS90% Code39 8mil / 0.2mm @ PCS90% QRCode |
|||
| Scan Speed | Up to 500 scans/sec | 60 fps (at full resolution) | |||
| Sealing | IP42 water and dust resistance | ||||
| Indicator | Beep and LED | - | |||
| Print Contrast | 25% minimum | PCS30% @ 5mil / 0.127mm | |||
| Reading Distance | Up to 550mm @ 20mil / 0.5mm, PCS90%, Code39 | 250mm @ 20mil / 0.5mm, PCS90% | |||
OTHER DATA |
|||||
| Power Consumption | 110 mA | ||||
| Power Supply | +5V RS232 - USB +5V | ||||
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) | ||||
| Drop Resistance | 180 cm | ||||
| Materials | ABS / Rubber | ||||
| Dimensions | 73.50 mm (W) x 173 mm (L) x 76.2 mm (H) | ||||
| MTBF | 50.000 hours | ||||
| Weight | 110 g | - | |||
Models
All available models
995ED030300233
SCANMATIC SCANNER BARCODE 2D SM420
994ED030300233
SCANMATIC SCANNER BARCODE 1D SM410 + KIT
