KPM302III
RFID Version: multiple SAM management, Enhanced print head for sharp and precise printing, Powerful 32-bit processor, internal barcode scanner ideal for card validation and fraud prevention – optional, and automatic email sending for service purposes.
Other listed elements include Remote update of logo and fonts (True Font), Drivers available on the printer's flash disk, Sw EasyMyfare for reading/writing data on Mifare tags, and Sw EthLocator to find connected network printers and configure their parameters.
Key points
KPM302
Fast printing
200 dpi quality, optional 300 dpi, with speed over 200 mm/sec.
Versatile tickets
Supports widths from 20 to 82.5 mm.
Heavy-duty use
Designed for demanding applications and continuous use.
Reliable cutter
Over 1,500,000 cuts for long-lasting performance.
Barcodes and integration
1D/2D barcodes, True Font, Ethernet, RS232 and USB.
Galleria

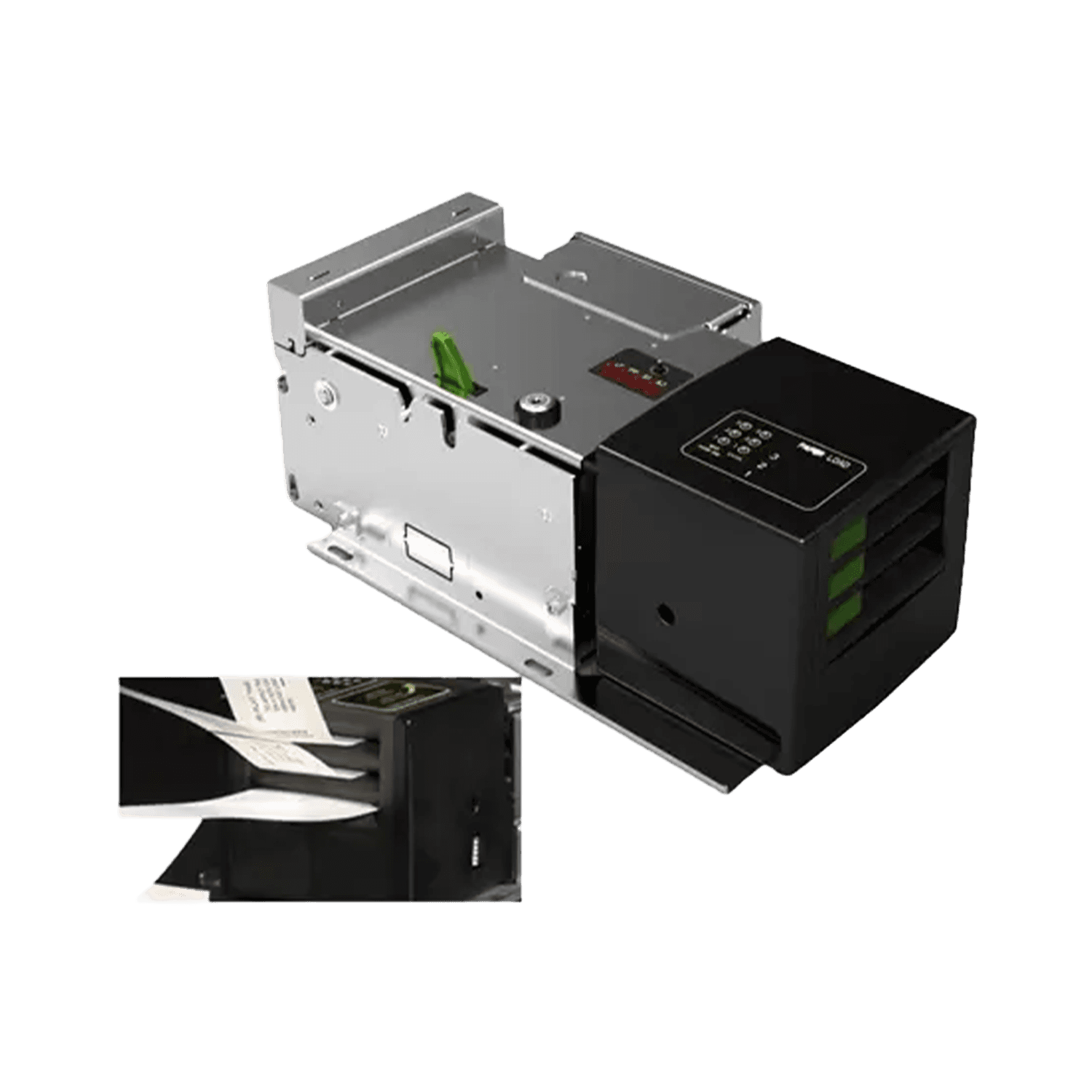

KPM302III from every angle
Technical sheet
Technical sheet
| Printing method | Thermal with fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm) |
| Printing speed (max) | 200 mm/sec |
| Paper width | 20-82.5 mm, adjustable in 2 mm increments |
| Paper weight | 80-255 g/m² |
| External roll diameter | 300 mm |
| Roll core diameter | 25 mm |
| Sensors | Paper presence; printhead temperature; paper presence on output; adjustable detectors for black mark or translucent gap/hole; cover open; optional low paper sensor; autocutter error |
| Emulation | CUSTOM/POS; SVELTA |
| Interfaces | RS232; USB; Ethernet |
| Print Driver | Windows® (32/64 bit); CUPS Linux; Virtual COM; OPOS; Android™; iOS |
| Software Tools | PrinterSet; Custom Power Tool; Status Monitor; Custom Windows® API; Driver Manager |
| Special features | Wristband; full cut; ultra-heavy-duty design; RFID HF; RFID UHF; triple feeder |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 0.8 A |
| Print Head Life | 100 km / 100M pulses |
| Cutter | Full cut |
| Cutter life | 1,500,000 cuts |
| Operating temperature | 0°C ~ 50°C |
| Dimensions (L x W x H) | 191 x 160 x 123 mm |
| Weight | 3.5 kg |
| Box contents | device; quick guide; power cable harness; paper width reducer; fixing brackets (x2); cut-and-drop kit; burster kit; ruler |
Models
All available models
915AV210100700
PRINTER KPM302III ETH USB RS232
