TREK Monitor 21.5"

Name: TREK Monitor 21.5"
Brand: Custom

21.5" Touchscreen Monitor

Download datasheet Request a quote

TREK Monitor 21.5"

With its sleek and minimalistic design, the TREK 21.5” Monitor fits wherever touchscreen functionality is required. POS, Self-Service, KDS, Price Checker, and more, TREK Monitor offers flexibility to install as either an operator touchscreen or an interactive customer facing display. Deploy countertop on the included stand or leverage the 75mm VESA pattern for pole and wall mounting. Purpose built for commercial environments, TREK Monitor features single USB-C cable convenience and rugged IP54 protection. And, as with all TREK products, you can easily add accessories to transform TREK Monitor for any use case.

Key points

TREK Monitor 21.5"

Simplicity

TREK Monitor simplifies connectivity via a single USB-C cable which provides touch, video signal and power. Alternatively, HDMI, USB-A and power connectors are also available to support legacy connections to POS systems, PCs and compute boxes.

Versatility

TREK Monitor supports all TREK micro USB accessories allowing for endless configurations to support a variety of use cases.

Flexibility

Whether placed on the counter via the included stand or mounted onto any 75 x 75 mm VESA pole or bracket, the TREK monitor can be positioned wherever needed to best serve the customer.

Durability

Retail-hardened and backed by Custom’s warranty support, TREK Monitor is built to withstand the rigors of any environment.

Applications

TREK Monitor 21.5" is designed for the following applications

Retail

Hospitality

Grocery

C-Store

Entertainment

Gaming

Galleria

TREK Monitor 21.5" from every angle

Technical sheet

Technical sheet — TREK Monitor 21.5"
Touch Display	21.5"
Resolution	1920 x 1080
Aspect Ratio	16:9
Touch Technology	True-Flat PCAP multi-touch
Touch Interface	USB
Brightness	LCD Panel: 350 NITS \| PCAP Touch: 310 NITS
Viewing Angle	Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
USB Type-C	1x USB 3.0 full-functioned (DP / PD 5 V / 2 A, 12 V / 1 A)
HDMI	1x
Micro USB	3x
DC Jack	1x 2 pin
Speaker	1x 3 W
Auto Adjust Button	1x
Power Button	1x
Stand	Included
VESA Mount	75 x 75 mm

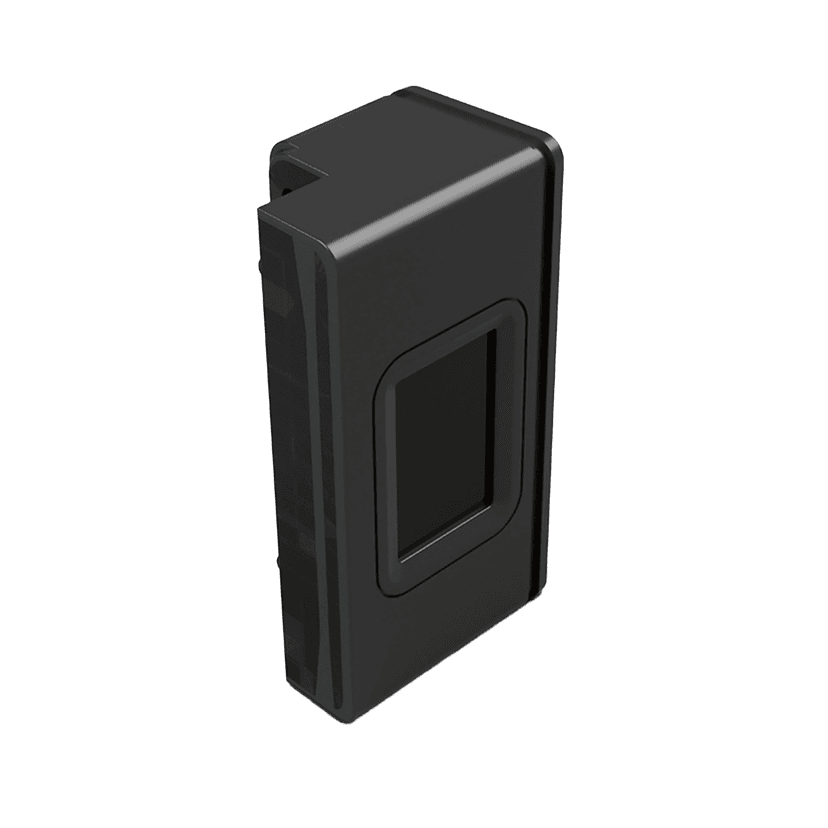

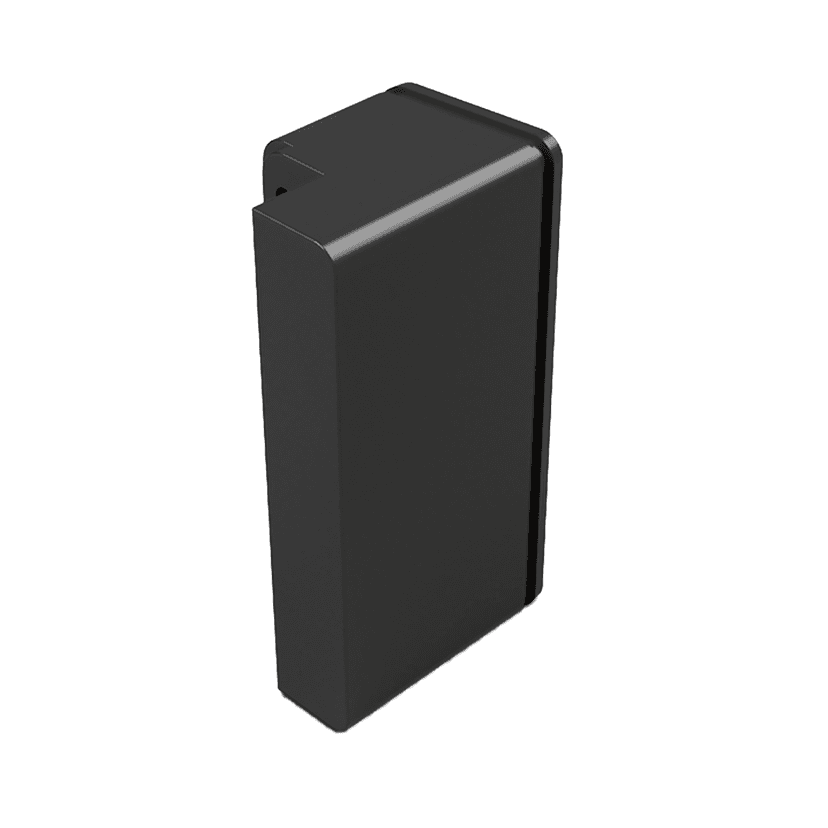

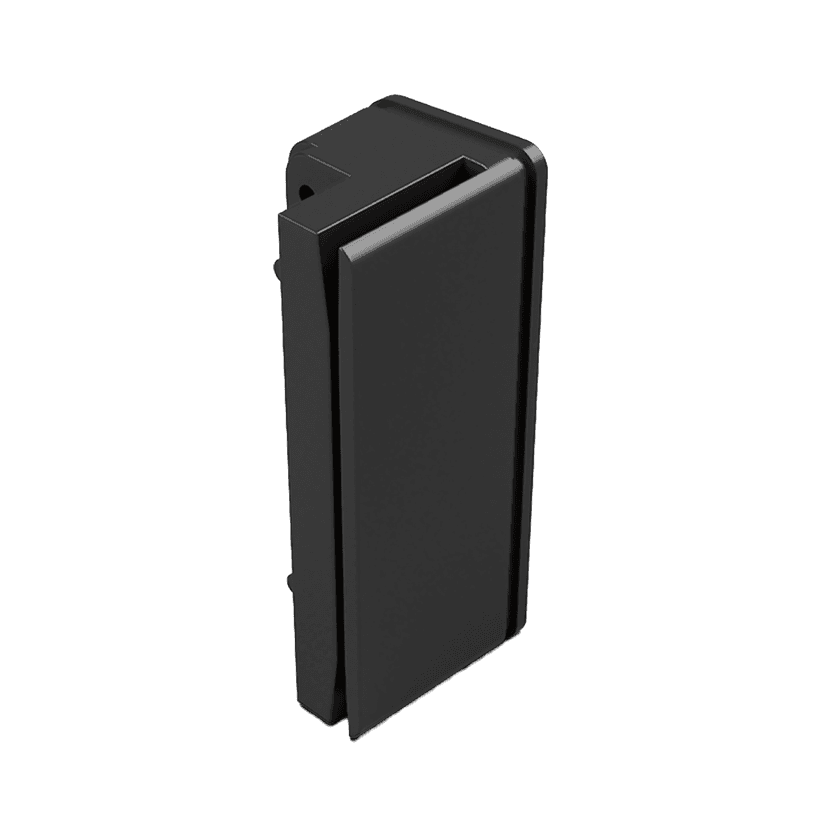

Accessory Options	2D Scanner, Camera / Microphone, Fingerprint Reader, NFC / RFID Reader, iButton, Light Bar, MSR
Ingress Protection	IP54 (screen side)
Operating Temperature	0° C ~ 35° C (32° F ~ 95° F)
Storage Temperature	-20° C ~ 60° C (-4° F ~ 140° F)
Humidity	20% ~ 85% RH non-condensing
W x D x H	571.8 mm x 42 mm x 309.6 mm (without stand) 517.8 mm x 165 mm x 334.5 mm (with stand)
Weight	3.09 kg (without stand) 3.95 kg (with stand)
What’s in the Box	Monitor, Stand, 1.8 m USB-C cable, Power supply, NA power cord, EU power cord (Note: power supply required only for HDMI + USB-A connections)
