TK180 METAL
TK180 Metal is the smallest combined printer with high reliability features. The printer can handle paper thickness up to 255 gsm and tickets from 20mm to 82.5 mm wide. TK180 Metal is equipped with a powerful internal processor and Hot swap function. Speed > 200 mm/s. RS232 + USB + ETH interfaces. The printer Supports True Font characters and 2D barcodes, and is capable of managing logo drag&drops. In addition to the most common sensors, it is also equipped with the new mobile sensor, capable of identifying black marks or gaps on the non-thermal side.
Galleria

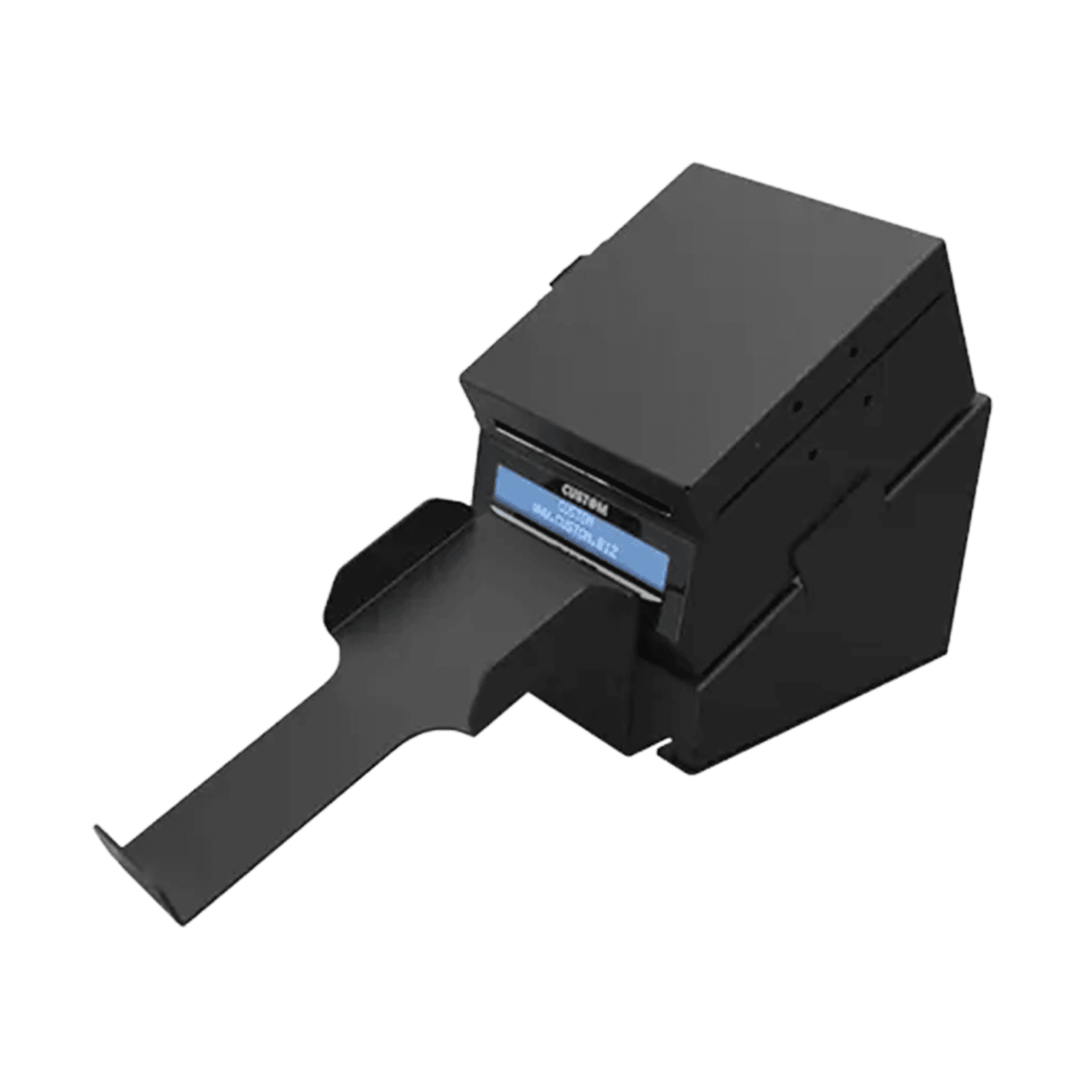

TK180 METAL from every angle
Technical sheet
Technical sheet
| Printing method | Thermal with fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm) |
| Printing speed (max) | 200 mm/sec |
| Paper width | 20-82,5 mm |
| Paper weight | 70-255 g/m² |
| Paper thickness | Max 270 μm |
| External roll diameter (max) | 200 mm |
| Roll core diameter | 25 mm |
| Sensors | Paper presence; printhead temperature; paper presence on output; adjustable detectors for black mark or translucent gap/hole; cover open; optional low paper sensor; autocutter error |
| Emulation | CUSTOM/POS; SVELTA |
| Interfaces | RS232; USB; Ethernet |
| Print Driver | Windows® (32/64 bit); Linux (32/64 bit); Virtual COM (Linux or Windows® 32/64 bit); OPOS; Android™; iOS |
| Software Tools | PrinterSet; CustomPowerTool; Status Monitor |
| Special features | compact; desktop; full cut; tear-off; wristband; labels; robust; RFID UHF |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1,5 A |
| Print Head Life | 100 Km / 100M pulses |
| Cutter | full cut or tear-off |
| Cutter life | 1.000.000 cuts |
| Operating temperature | 0°C ~ 40°C |
| Dimensions (L x W x H) | 122,6 x 145,6 x 85 mm |
| Weight | 2,2 Kg |
| Box contents | device; quick guide; power supply; power cord; paper block guide; paper width reducer |
Models
All available models
911HL010300733
PRCT TK180 ETH USB BLACK AERO E06 CN
