SCANNER A6
Front and rear scanning, Robust with metal structure, Paper width 108 mm (scanning area 108 mm), Colour (RGB) - Grayscale - Black and white, and Resolution 200-300dpi double-sided.
Other listed elements include Maximum scanning speed: 400mm/sec (B/W at 300dpi), Sensor for jam detection/held sheet (internal encoder), Document alignment system at entry (deskew), Front paper slot with RGB LED, Fully inspectable for easy cleaning and maintenance, Paper pickup or ejection, and USB 2.0 interface.
Galleria

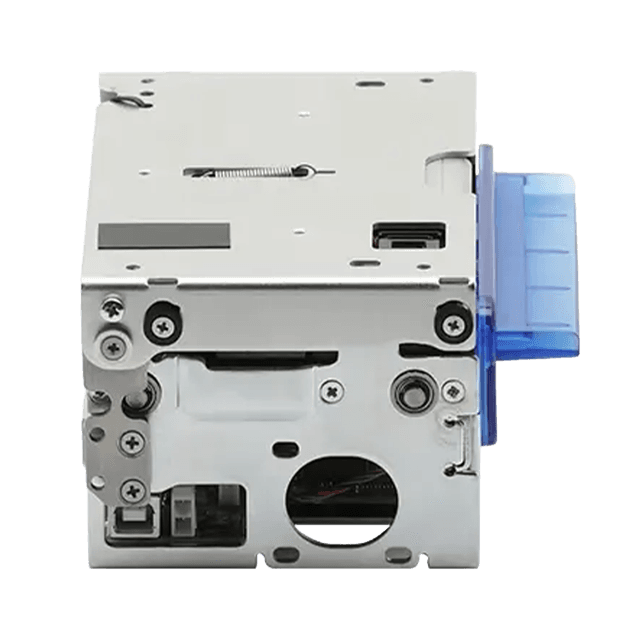

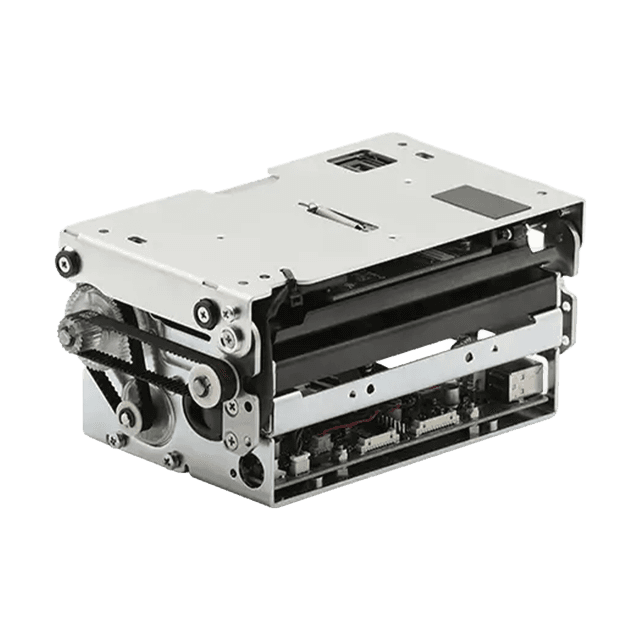

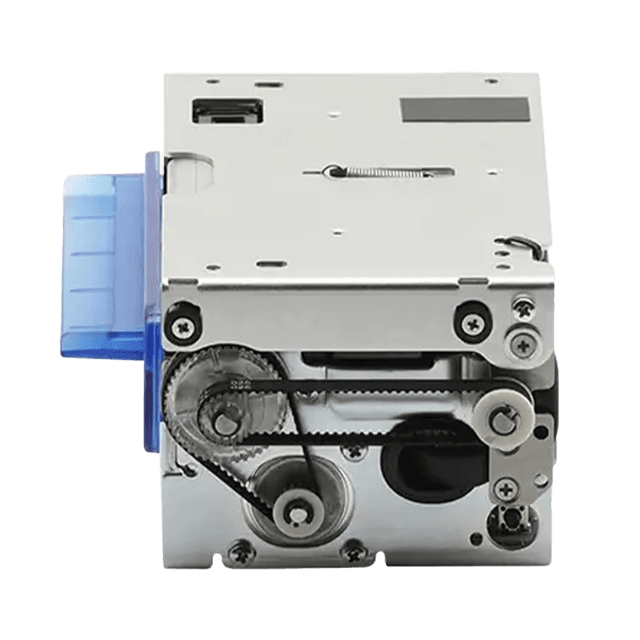

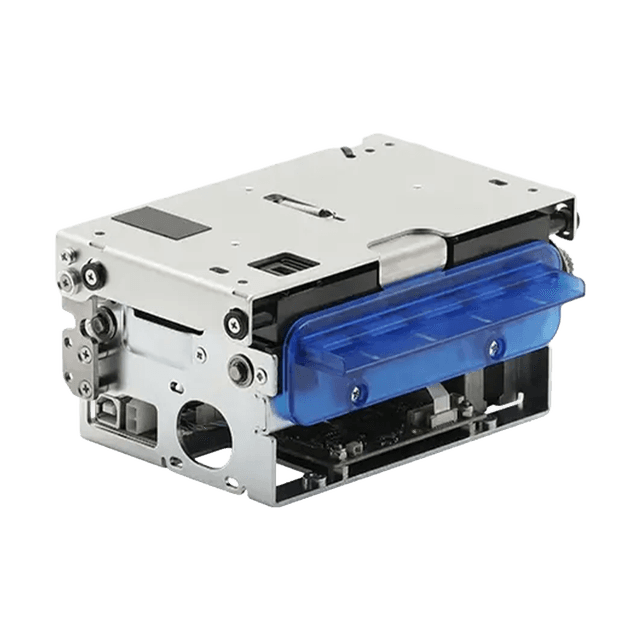

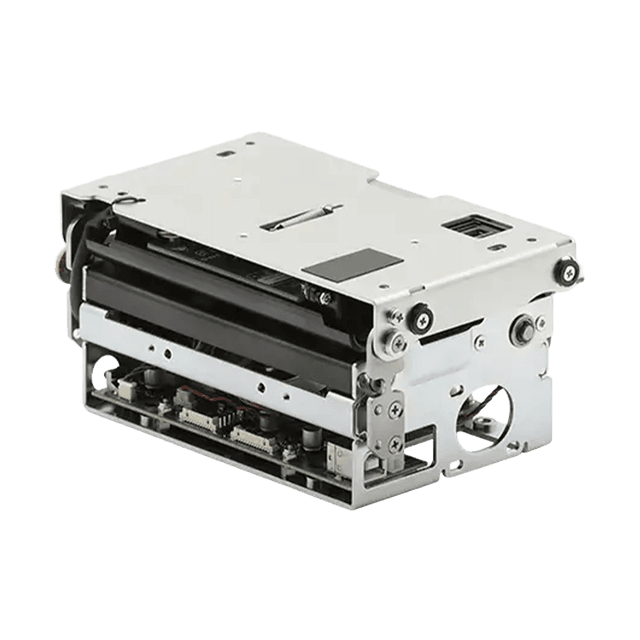

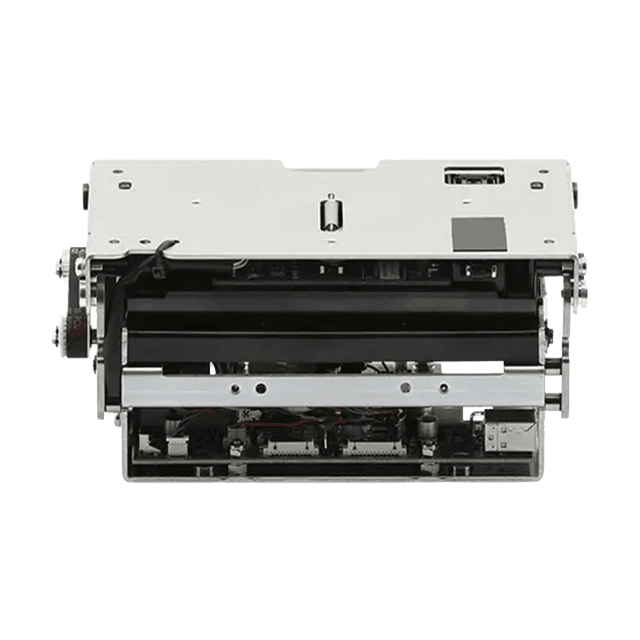

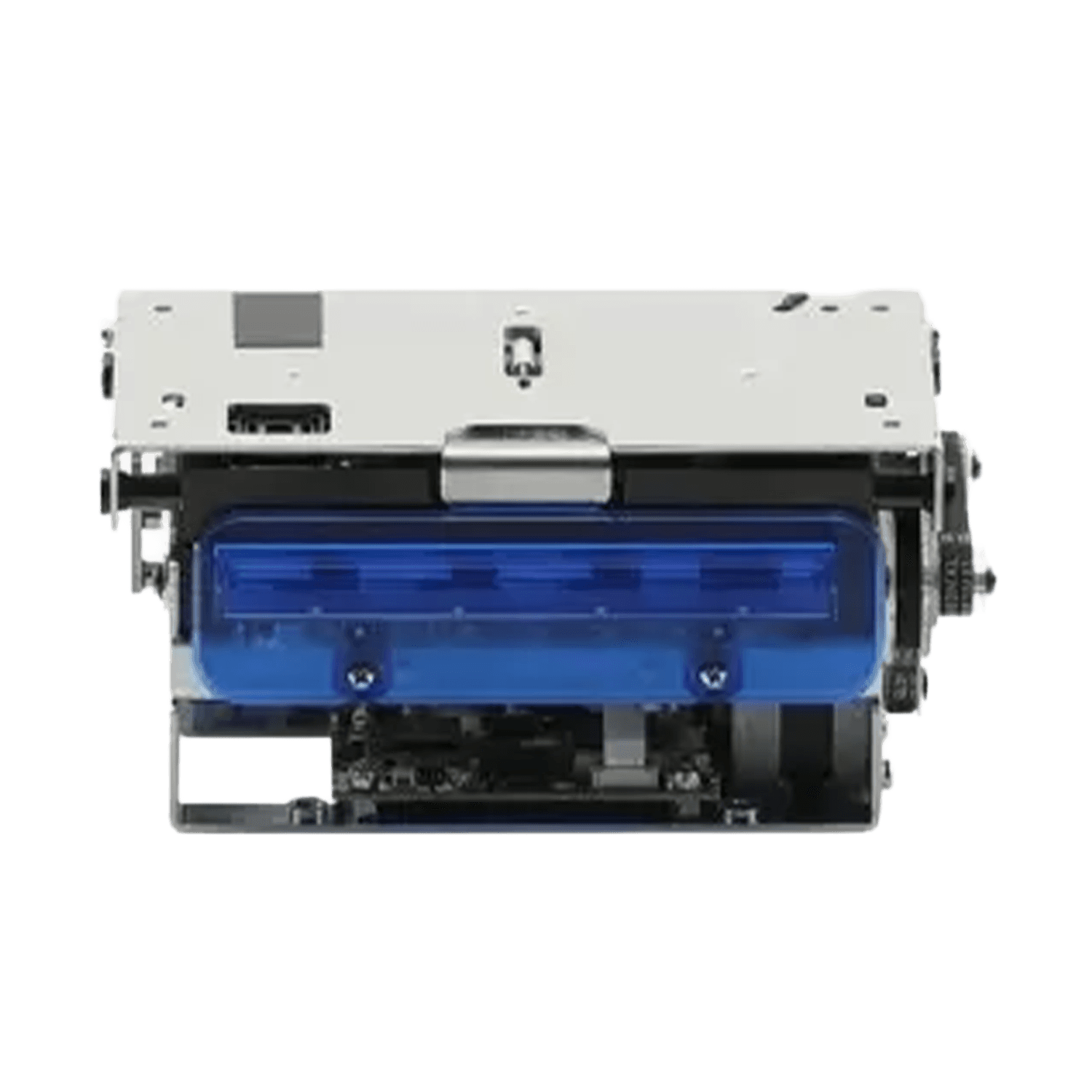

SCANNER A6 from every angle
Technical sheet
Technical sheet
| Scanner type | Contact Image Sensor (CIS) |
|---|---|
| Resolution | 150 dpi; 200 dpi; 250 dpi; 300 dpi |
| Light source | Color LEDs: red (635 nm); green (525 nm); blue (460 nm) |
| Maximum scanning speed | 400 mm/sec |
| Maximum scanning width | 108 mm |
| Scanning length | 70-3000 mm |
| Image format | .bmp; .jpeg; .png; .raw; uncompressed .tiff; CCITT3-compressed .tiff; CCITT4-compressed .tiff; RLE-compressed .tiff; LZW-compressed .tiff |
| Interfaces | USB |
| Sensors | Paper presence at input and output; paper holding; cover open; upper and lower CIS; MSR model: MICR reader; MSR US model: ultrasonic sheet overlap detection |
| Print driver | Windows® (32/64 bit), WHQL certification and silent installation available upon request; Linux (32/64 bit) |
| Software tools | CuDoubleSidedScannerAPI for Win32 and .NET |
| Libraries | Chameleon |
| Functions | Double-sided RGB scanning; CMC7 MICR reading; image cropping and software deskew, only for .jpg images |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1 A |
| Operating temperature | From 0°C to +50°C |
| Dimensions (L x W x H) | 115 x 166.5 x 76.1 mm |
| Weight | 1 kg |
| Package contents | Device; instruction sheet; power cable harness |
Models
All available models
993LV010900200
