SCANNER A4
Front and rear scanning, Robust with metal structure, Resolution 200-300-600 dpi double-sided, maximum scanner speed: 400 mm/sec (B/W at 300 dpi), and front paper feed with RGB LED.
Other listed elements include Sensors for jam detection/held sheet (internal encoder), Document alignment system at entry (deskew), fully inspectable for easy cleaning and maintenance, retrieval or ejection, paper width: min 70 mm - max 218 mm, maximum scan area: 217 mm, and USB 2.0 / 3.0 interface.

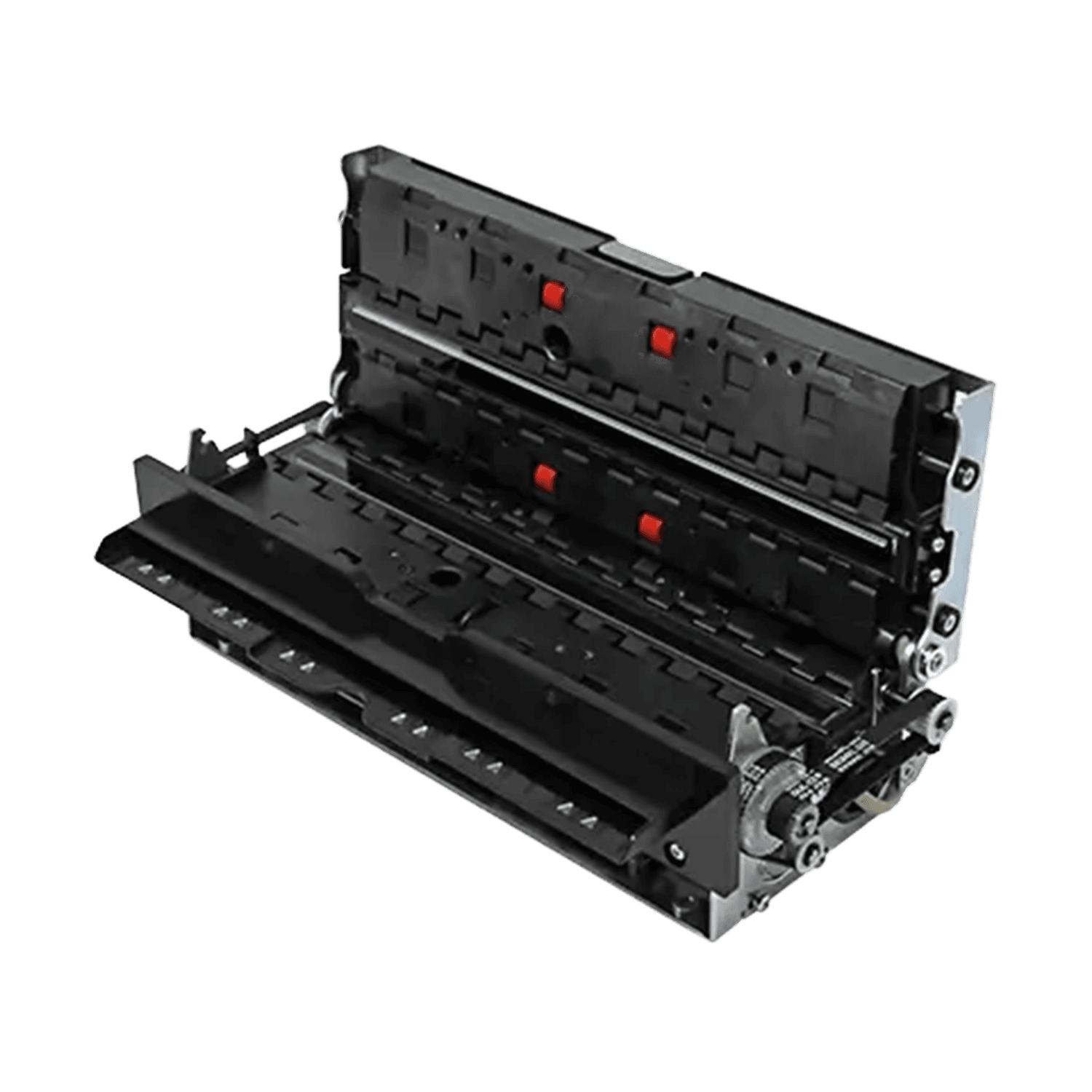

Galleria
SCANNER A4 from every angle
Technical sheet
Technical sheet
| Scanner type | Contact Image Sensor (CIS) |
|---|---|
| Resolution | 200 dpi; 300 dpi; 600 dpi |
| Light source | Color LEDs: red (635 nm); green (525 nm); blue (460 nm) |
| Maximum scanning speed | 400 mm/sec |
| Maximum scanning width | 217.4 mm |
| Scanning length | 70-1000 mm |
| Image format | .bmp; .jpeg; .png; .raw; uncompressed .tiff; CCITT3-compressed .tiff; CCITT4-compressed .tiff; RLE-compressed .tiff; LZW-compressed .tiff |
| Interfaces | USB 3.1 |
| Sensors | Paper presence at input and output; paper jam and paper holding; cover open; deskew; upper and lower CIS; optional ultrasonic sheet overlap detection |
| Print driver | Windows® (32/64 bit), WHQL certification and silent installation available upon request; Linux (32/64 bit) |
| Software tools | CuDoubleSidedScannerAPI for Win32 and .NET |
| Libraries | Chameleon |
| Functions | Double-sided RGB scanning; mechanical deskew; image cropping and software deskew, only for .jpg images; ultrasonic double-sheet detection |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1 A |
| Operating temperature | From 0°C to +50°C |
| Dimensions (L x W x H) | 274 x 127.4 x 77 mm |
| Weight | 1.98 kg |
| Package contents | Device; instruction sheet |
Models
All available models
992LT030100J00
