PP54 EVO
Printing, reading and ticket validation system
PP54 EVO
The most innovative system for parking, transport, and access control, ideal for any application with barcode tickets and PP54 EVO integrates printing, scanning, issuing, reading, and ticket validation into a single system, efficiently managing entry, payment, and exit phases. With a resolution of 300 dpi, barcode reading for 1D/2D, RFID technology, and handling up to 3 coupons simultaneously, it is designed to ensure reliable performance even in challenging outdoor conditions.
Key points
PP54 EVO
3-in-1 system
Prints, reads and validates tickets at entry, payment and exit.
300 dpi scanning
Bidirectional reading with CIS technology and 1D/2D barcodes.
Tickets and coupons
Handles ISO7811 tickets, plastic cards and up to 3 coupons.
Modular structure
With ticket separator and printing/reading unit, ideal even for complex outdoor conditions.
Complete connectivity
Ethernet, RS232, optional USB, RFID, RGB LEDs and optional display.
Applications
PP54 EVO is designed for the following applications
Parking
Transport
Access control
Galleria

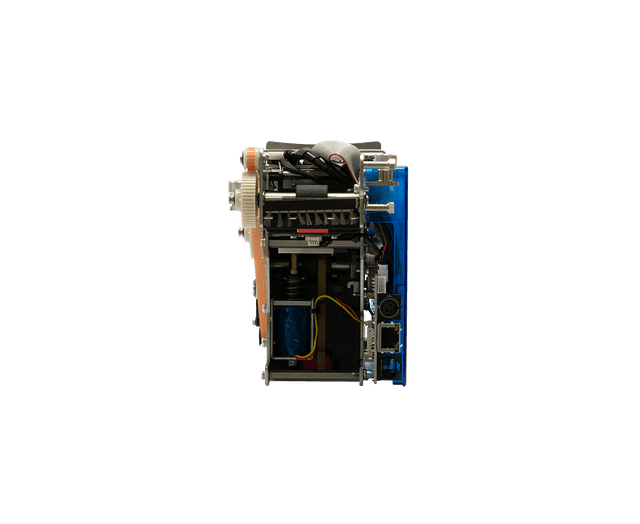

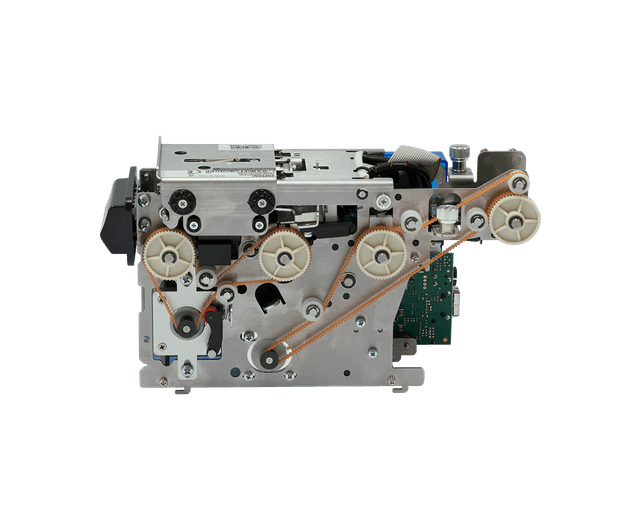

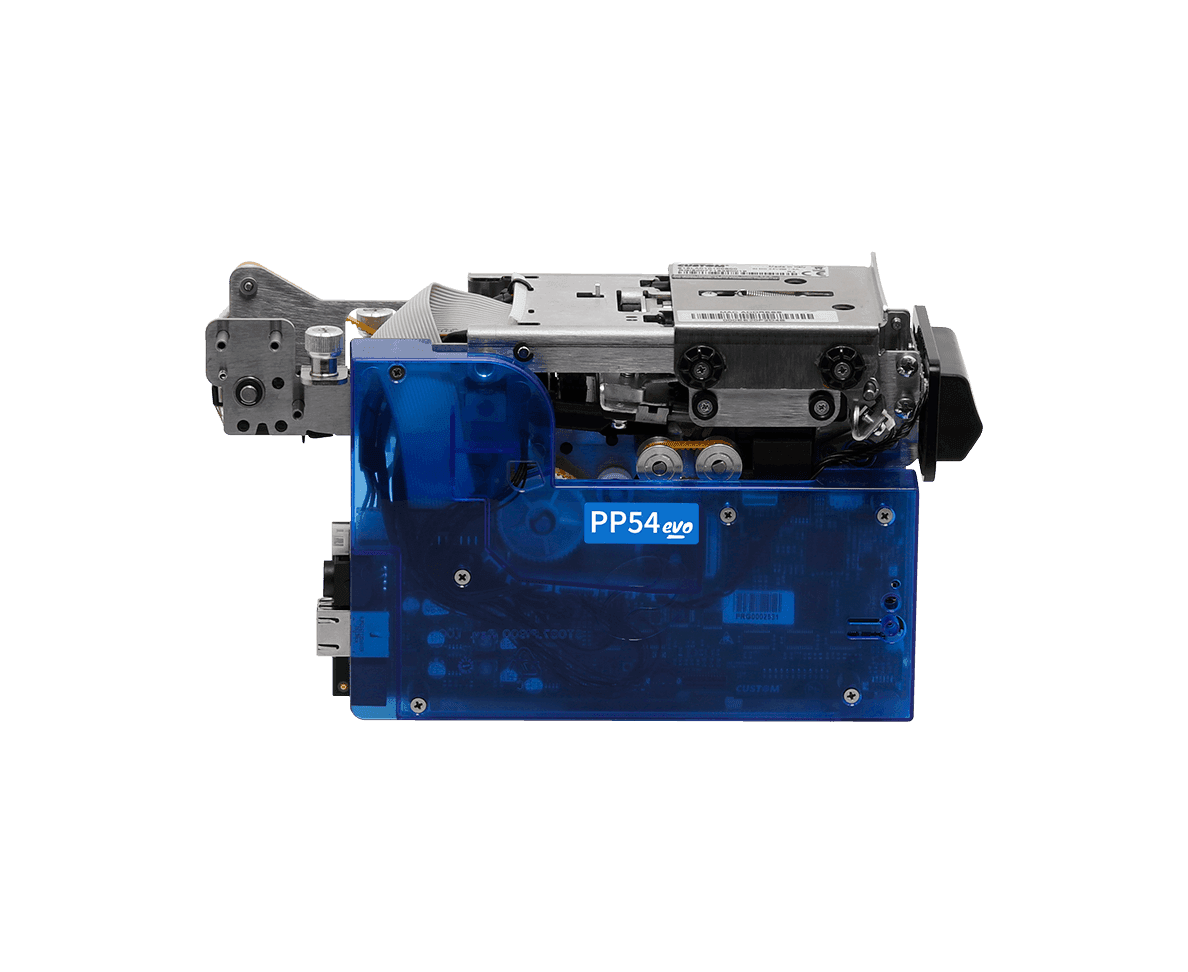

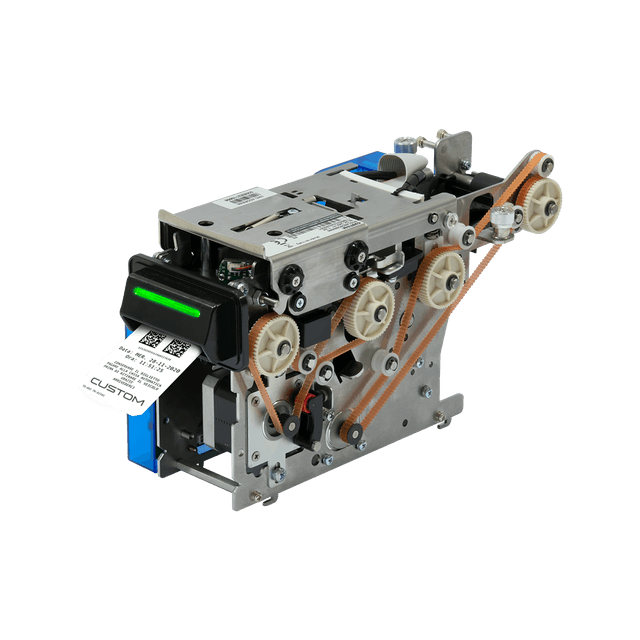

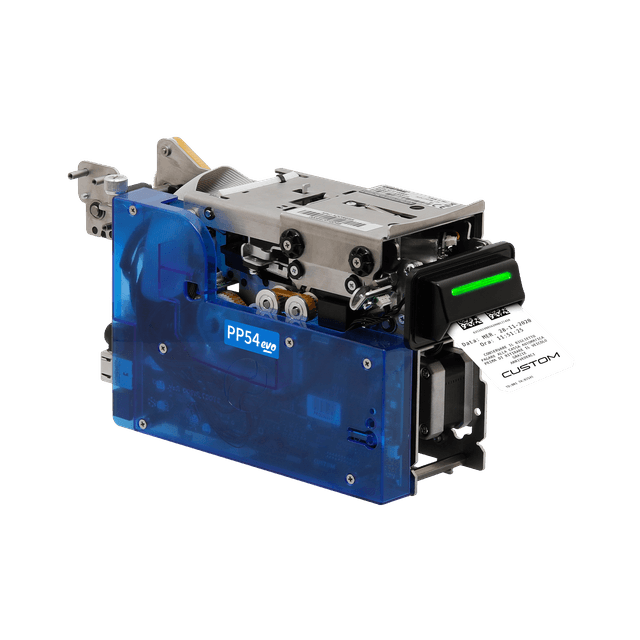

PP54 EVO from every angle
Technical sheet
Technical sheet
| Printing method | Thermal with fixed head |
|---|---|
| Resolution | 300 dpi (12 dots/mm) |
| Printing speed (max) | 150 mm/sec |
| Paper width | 51,5 mm |
| Paper weight | 140-210 g/m² |
| Paper thickness | 140-230 μm |
| Sensors | Head temperature; paper in; paper out; cover open; 4 internal sensors for ticket management; external near paper end sensor (optional) |
| Emulation | CUSTOM/POS |
| Interfaces | RS232; Ethernet; optional USB |
| Print Driver | Windows® (32/64 bit) - only on request WHQL and silent installation |
| Software Tools | PP54 Layout Editor SDK; PrinterSet |
| Special features | 300 dpi; ISO fan-fold; 54 x 86 mm; ticket scanning; optional I/O M/B |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1,2 A |
| Print Head Life | 100 Km / 100M pulses |
| Cutter | burster |
| Cutter life | 1.000.000 cuts |
| Operating temperature | -10°C ~ +60°C |
| Dimensions (L x W x H) | 270 x 108 x 146 mm |
| Weight | 3 Kg |
| Box contents | device; quick guide |

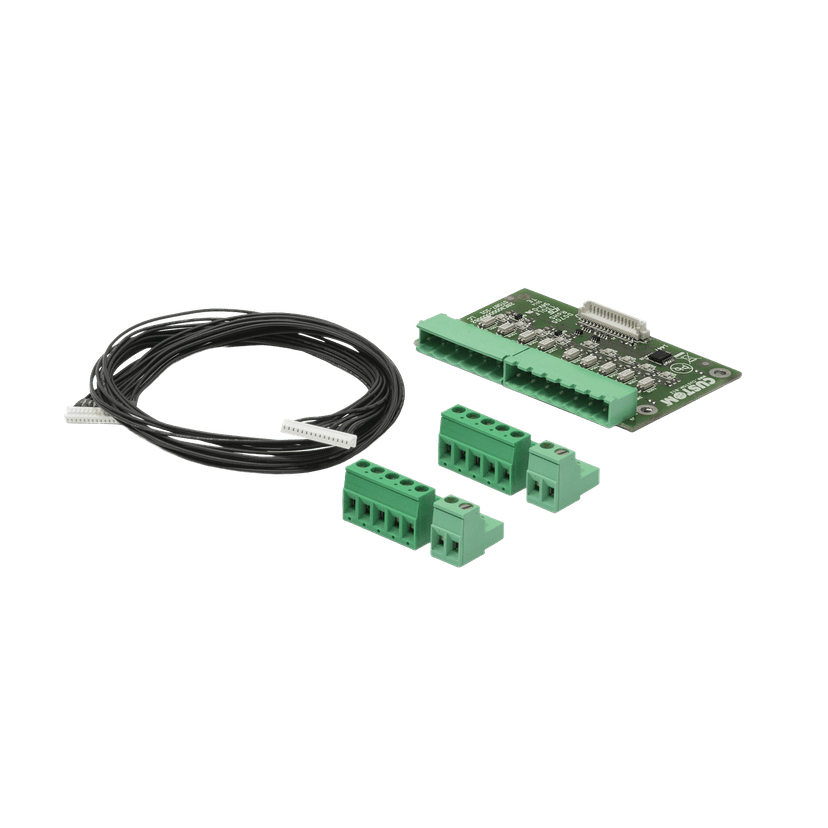

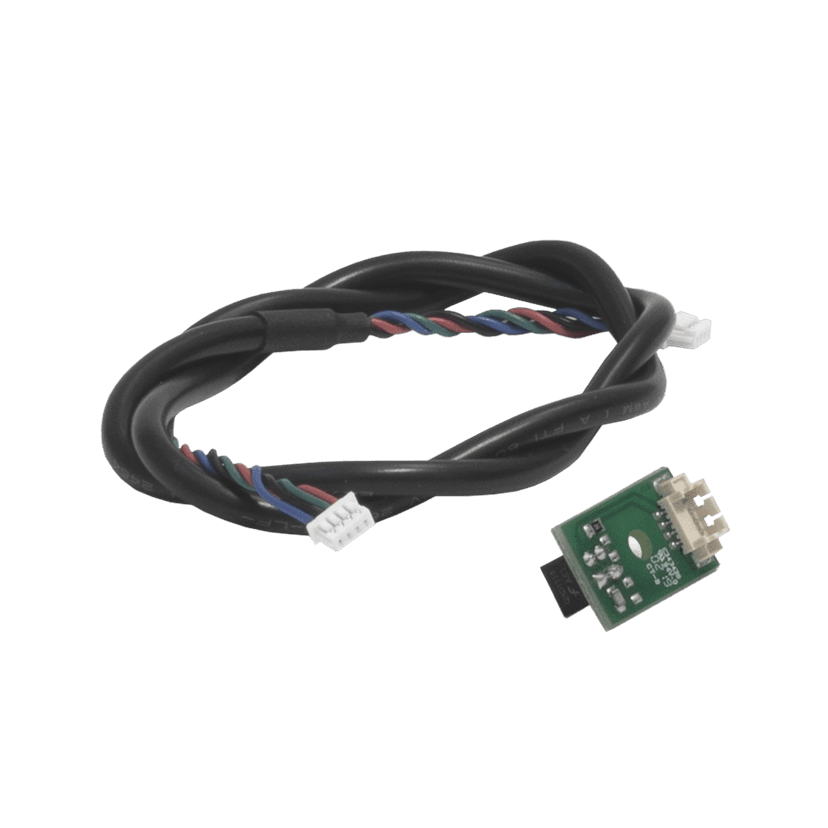

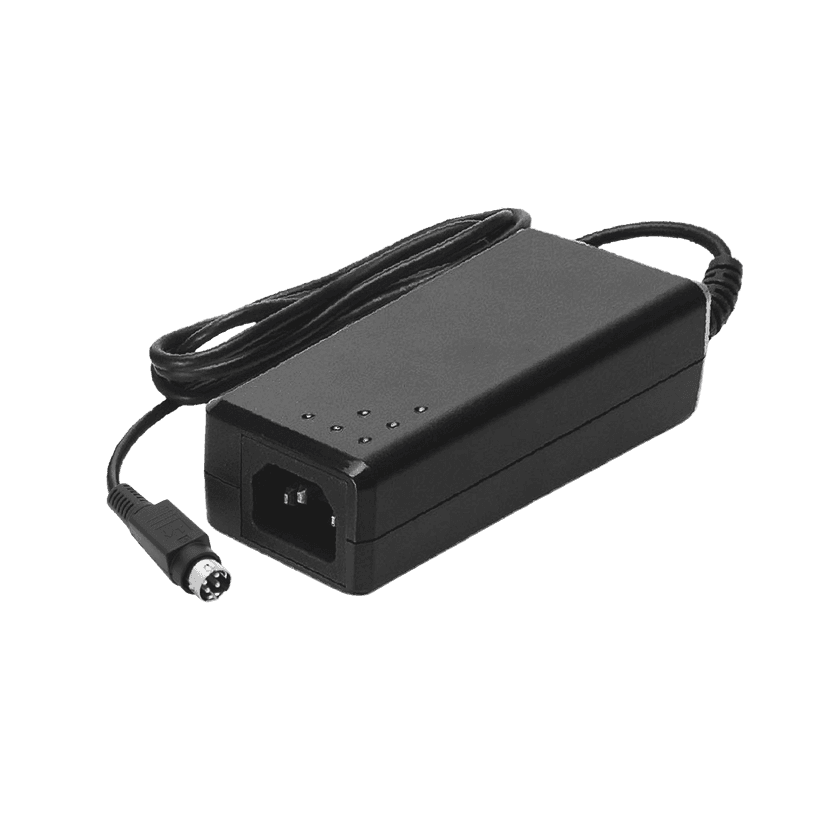

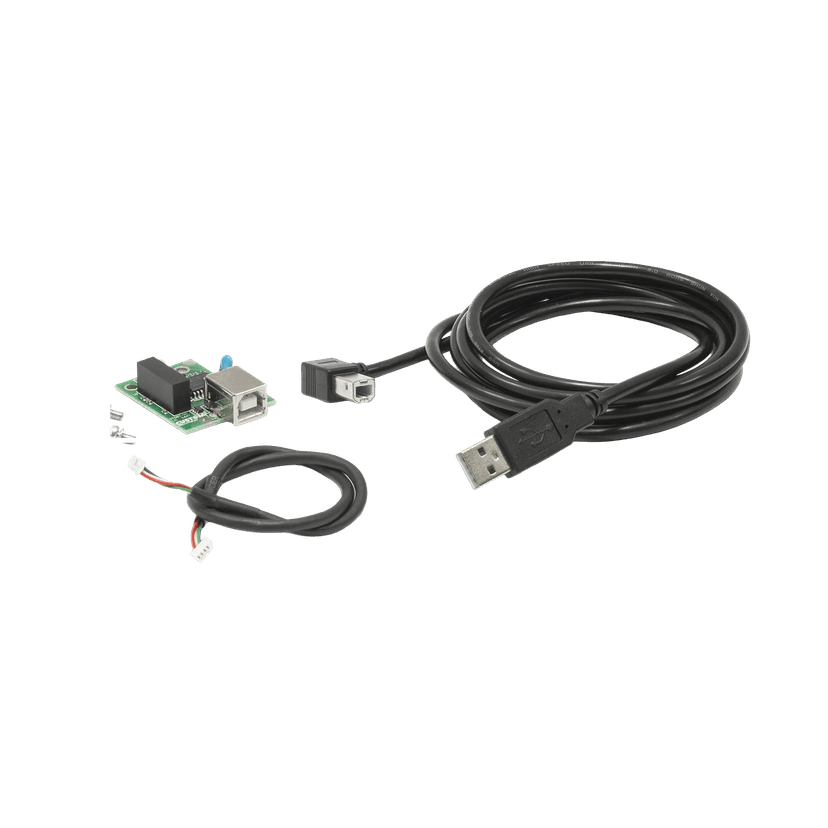

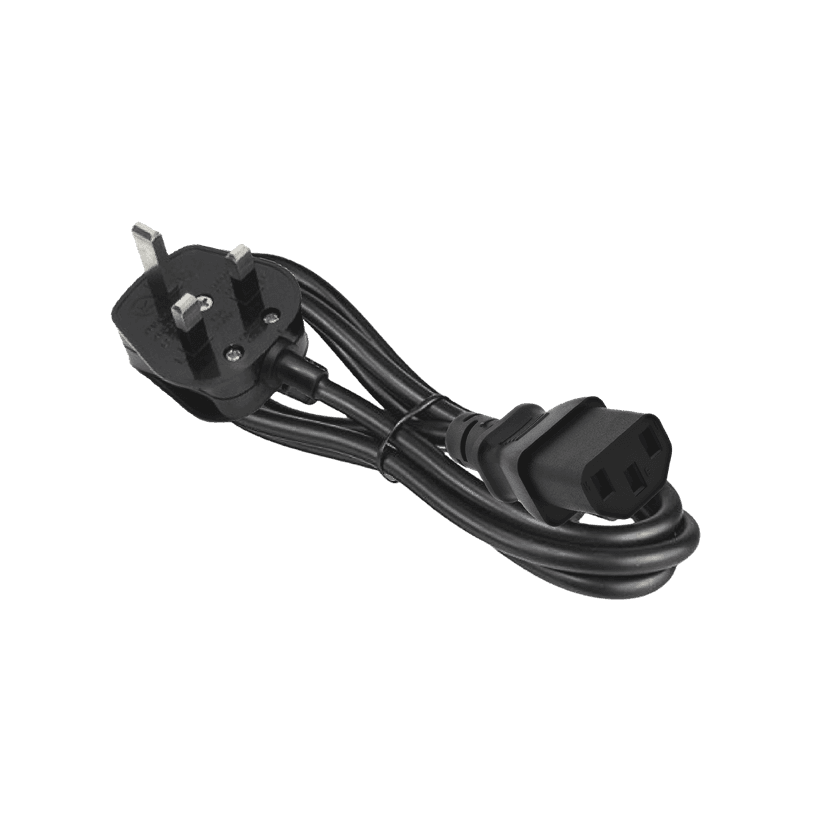

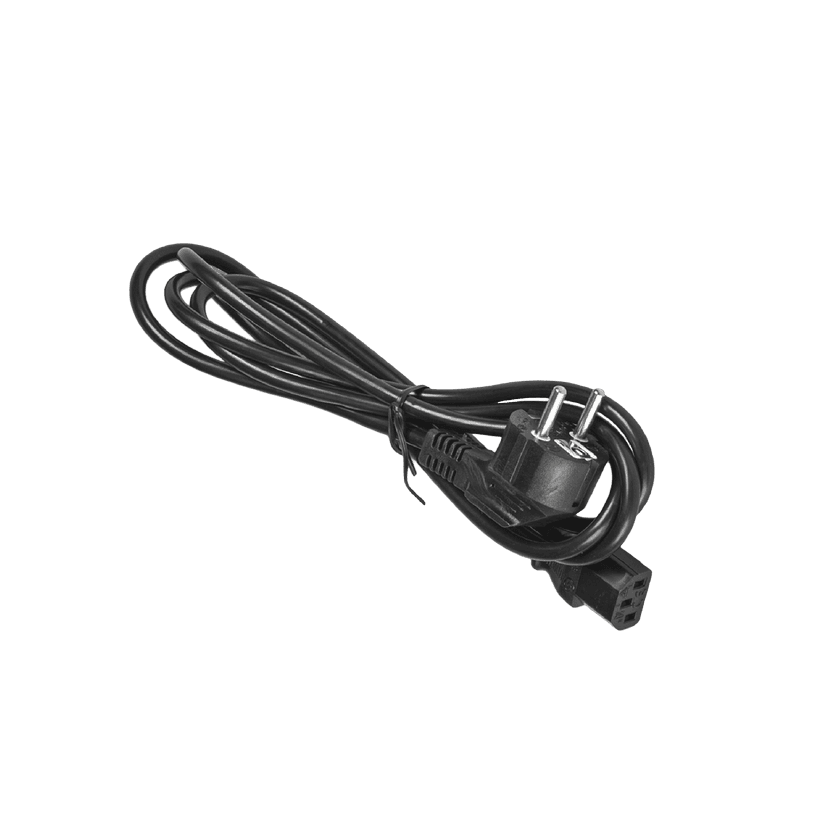

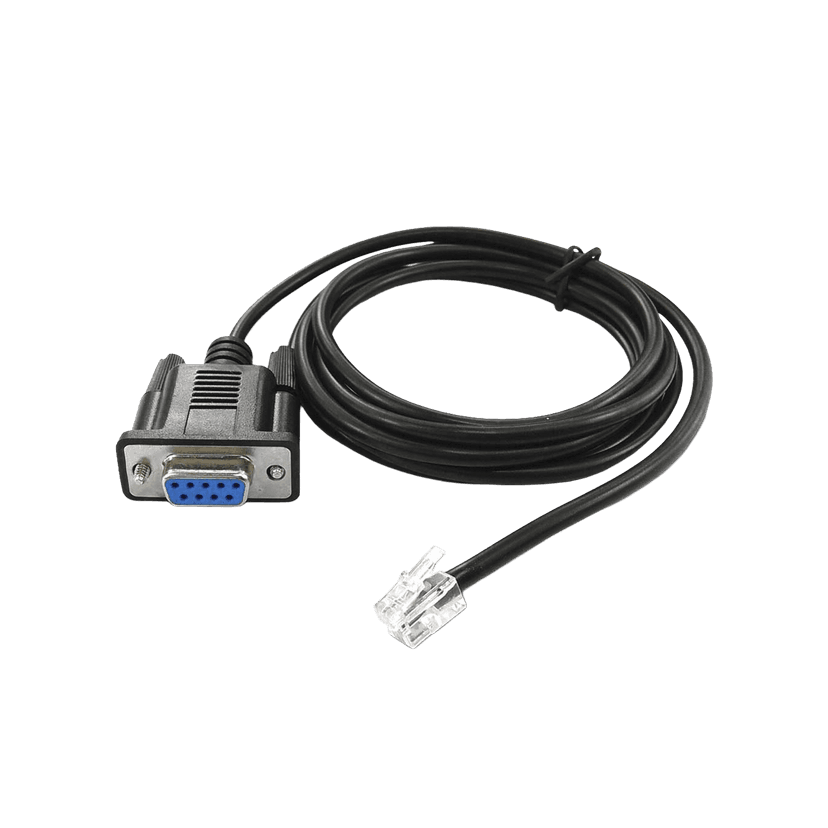

Accessories
All accessories available for PP54 EVO
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Models
All available models
915LA020100600
PP54 EVO 1-FEEDER RS232 ETH 1-CIS
