Self Check-In Printers
KPM862
Boarding Pass and Bag Tag Kiosk Self-Service Printer
KPM862
Ultra resistant, Highly reliable and robust, Very fast and powerful, the same model for ATB and BTP, and Contact Imager (CIS) sensors for detecting empty spaces instead of traditional black notch sensors, to improve reliability and reduce cleaning operations and virtually match any brand/hole/logo.
Other listed elements include Veriprint Barcode Validation (optional), Extra resistant cutter, RFID (optional), Prevention of Damaged Dots, Automatic ticket length detection, and Complete paper auto-loading without waste.
Key points
KPM862
Low TCO
Compact, robust and fast, with reduced operating costs.
ATB/BTP all-in-one
A single model for boarding passes and baggage tags.
Auto-calibration
Self-adjusting sensors to prevent waste and adapt to multiple paper types.
Veriprint® and RFID
Barcode validation and RFID configuration for future requirements.
Airport standards
Compatible with AEA/ITPS, CUTE/CUPPS and configurable by airline.

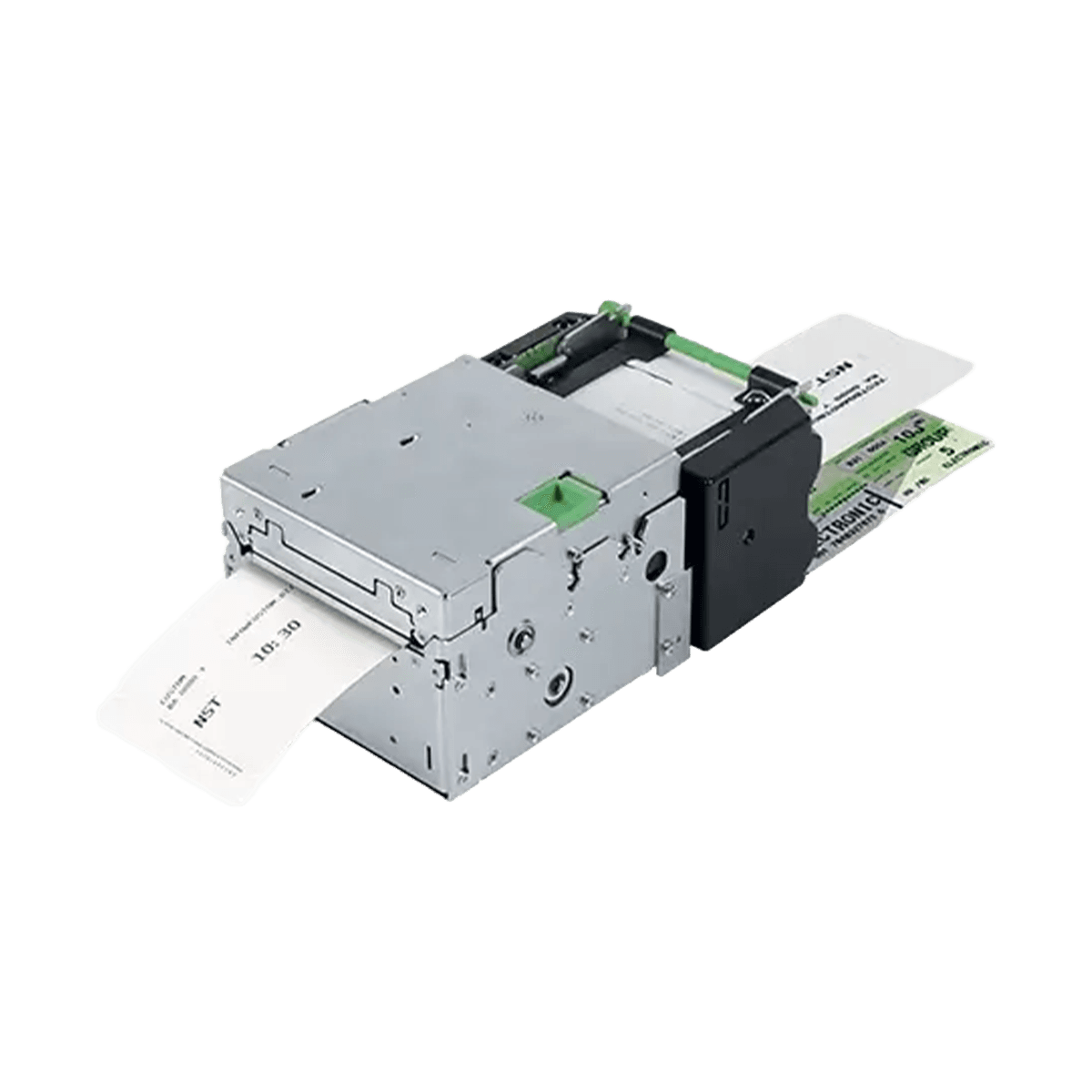

Galleria
KPM862 from every angle
Technical sheet
Technical sheet
| Printing method | Thermal with fixed head |
|---|---|
| Resolution | 200 dpi (8 dots/mm) |
| Printing speed (max.) | 220 mm/sec |
| Paper width | 40-86 mm; compliant with IATA Resolutions 740 and 722 and RP 1740 |
| Paper weight | 70-255 g/m²; 100-255 g/m² with Dual Feeder |
| External roll diameter | 150 mm, only for the Dual Feeder model; 300 mm |
| Roll core diameter | 25 mm |
| Sensors | Paper presence; print head temperature; paper presence at output; CIS (Contact Image Sensor) for black mark or translucent gap/hole; cover open; optional near paper end; automatic cutter error |
| Emulation | CUSTOM/POS; SVELTA |
| Interfaces | RS232; USB; Ethernet |
| Print driver | Windows® (32/64 bit); CUPS Linux (32/64 bit); Virtual COM (32/64 bit), with or without silent installation; Android™ |
| Software tools | PrinterSet; CustomPowerTool; Status Monitor; Custom Windows® API; Driver Manager |
| Special features | ISO ticket; label management; full cut; ultra-heavy-duty design; HF RFID; UHF RFID; VeriPrint; Dual Feeder |
| Power supply | 24 Vdc ± 10% |
| Typical consumption | 1.4 A |
| Print head life | 100 km / 100M pulses |
| Cutter | Full cut |
| Cutter life | 1,000,000 cuts |
| Operating temperature | -20°C ~ 60°C |
| Dimensions (L x W x H) | 164 x 153 x 97 mm |
| Weight | 2.15 kg |
| Package contents | Device; quick guide |
Models
All available models
915LK010300700
PRINTER KPM862 CIS ETH USB RS232 AVIATION
915LK010400700
PRINTER KPM862 CIS+DF ETH USB RS232 AVIATION
